Dc 5v Compound Microscope Parts Usb 3.0 Cooled Ccd Camera 380 - 650nm Spectral Range

Highlight

microscope accessory
,
compound microscope parts
Theory

Digital Camera
Spectral Range

380-650nm (with IR-cut Filter)
Imaging Sensor

Omnivision OV5640 CMOS(Colorful)
White Balance

ROI White Balance/ Manual Temp Tint Adjustment
Power Supply

DC 5V Over PC USB Port
Operation Software

Microsoft®Windows®XP / 7 / 8 /8.1/10(32 & 64 Bit)
Place of Origin

China
Brand Name

CNOEC, OPTO-EDU
Certification

CE, Rohs
Model Number

A59.2226
Document

Product Brochure PDF
Minimum Order Quantity

1 pc
Price

FOB $1~1000, Depend on Order Quantity
Packaging Details

Carton Packing, For Export Transportation
Delivery Time

5~20 Days
Payment Terms

T/T, West Union, Paypal
Supply Ability

5000 pcs/ Month

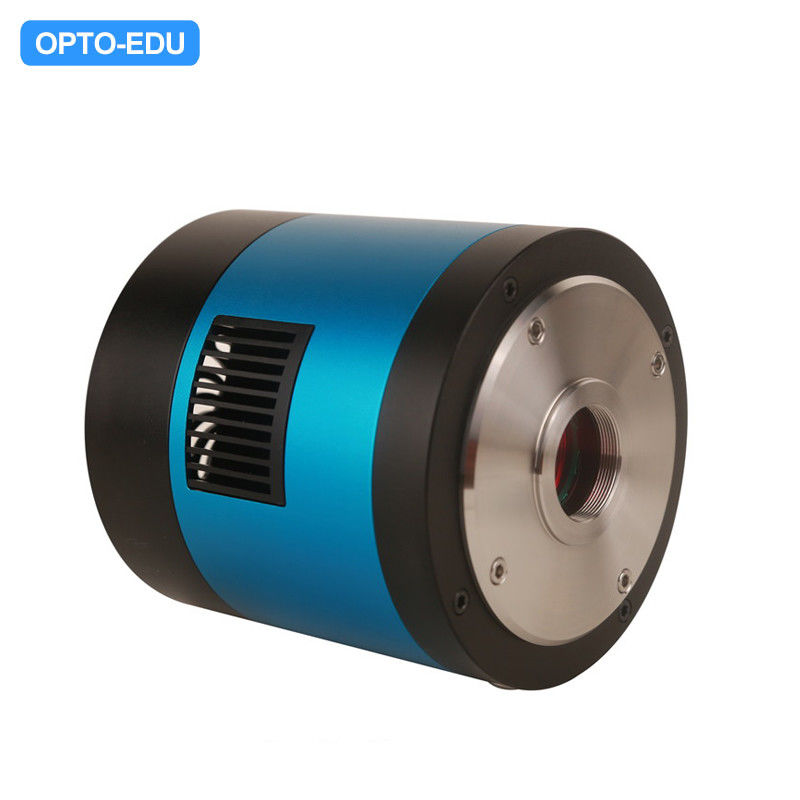

Dc 5v Compound Microscope Parts Usb 3.0 Cooled Ccd Camera 380 - 650nm Spectral Range

button button

Get Price Contact Now

Cata. No.	Sensor & Size(mm)	Pixel(μm)	G Sensitivity	FPS/Resolution	Binning	Exposure
Cata. No.	Sensor & Size(mm)	Pixel(μm)	Dark Signal	FPS/Resolution	Binning	Exposure
12MPA	12.0M/ICX834AQG(C)	3.10x3.10	420mv with 1/30s	3.6@24248x2836	1x1	0.06ms~3600s
12MPA	1"(13.15x8.77)		15.2mv with 1/30s	3.6@2124x1418	2x2
12MMA	12.0M/ICX834ALG(C)	3.10x3.10	420mv with 1/30s	3.6@24248x2836	1x1	0.06ms~3600s
12MMA	1"(13.15x8.77)		12mv with 1/30s(F8.0)	3.6@2124x1418	2x2
9MPA	9.0M/ICX814AQG(C)	3.69x3.69	580mv with 1/30s	4.4 @3388x2712	1x1	0.06ms~3600s
9MPA	1"(12.47x9.98)		12mv with 1/30s	4.4 @1694x1356	2x2
9MMA	9.0M/ICX814ALG(C)	3.69x3.69	580mv with 1/30s	4.4 @3388x2712	1x1	0.06ms~3600s
9MMA	1"(12.47x9.98)		12mv with 1/30s(F8.0)	4.4 @1694x1356	2x2
6MPA Hot	6.0M/ICX694AQG(C)	4.54x4.54	880mv with 1/30s	7.5@2748x2200	1x1	0.06ms~3600s
6MPA Hot	1"(12.48x9.99)		8mv with 1/30s	14@2748x1092
6MMA	6.0M/ICX694ALG(M)	4.54x4.54	1000mv with 1/30s	7.5@2748x2200	1x1	0.06ms~3600s
6MMA	1"(12.48x9.998)		8mv with 1/30s	14@2748x1092
2.8MPA	2.8M/ICX674AQG(C)	4.54x4.54	800mv with 1/30s	15@1940x1460	1x1	0.05ms~3600s
	2/3"(8.81x6.63)		4mv with 1/30s	17@1610x1212
				18@1932x1092
2.8MMA	2.8M/ICX674ALG(M)	4.54x4.54	950mv with 1/30s	15@1940x1460	1x1	0.05ms~3600s
	2/3"(8.81x6.63)		4mv with 1/30s	17@1610x1212
				18@1932x1092
1.4MPA	1.4M/ICX285AQA(C)	6.45x6.45	1240mv with 1/30s	15@1360x1024	1x1	0.07ms~3600s
	2/3"(8.88x6.70)		10mv with 1/30s
1.4MMA	1.4M/ICX285ALA(M)	6.45x6.45	1300mv with 1/30s	15@1360x1024	1x1	0.07ms~3600s
	2/3"(8.88x6.70)		11mv with 1/30s
1.4MPB	1.4M/ICX825AQA(C)	6.45x6.45	2000mv with 1/30s	25@1360x1040	1x1	0.07ms~3600s
	2/3"(8.88x6.70)		4.8mv with 1/30s
1.4MMB	1.4M/ICX825ALA(M)	6.45x6.45	2000mv with 1/30s	25@1360x1040	1x1
	2/3"(8.88x6.70)		4.8mv with 1/30s
Remark: C - Color, M-Monocolor, GS-GS Shutter
OTHER HARDWARE CONFIGURATION
Spectral Range	380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used
White Balance	ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Tech.	Ultra Fine Color Engine
Capture/Control SDK	Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording System	Still Picture and Movie
Cooling System*	Two-stage TE-cooling System -42 °C below Camera Body Temperature
OPERATING ENVIRONMENT
Operating Temperature	-10 °C~ 50 °C
Storage Temperature	-20 °C~ 60 °C
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port
Power Supply	External Power Adapter for Cooling System, DC12V,3A
SOFTWARE ENVIRONMENT
Operating System	Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit)
Operating System	OS X (Mac OS X), Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 2GB or More
	USB port: USB2.0 High-speed Port
	Display: 17" or Larger
	CD-ROM

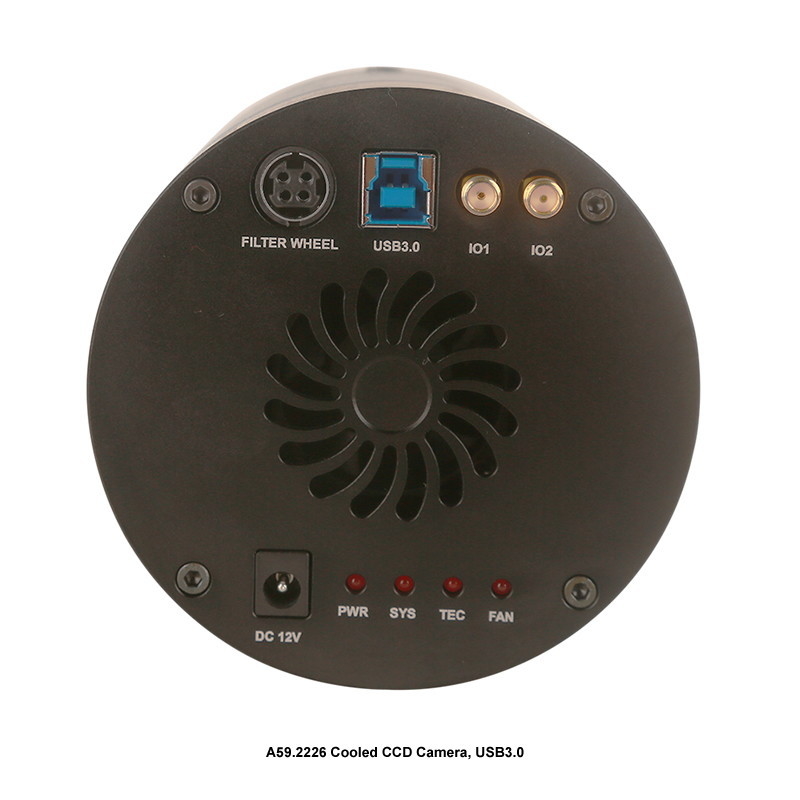

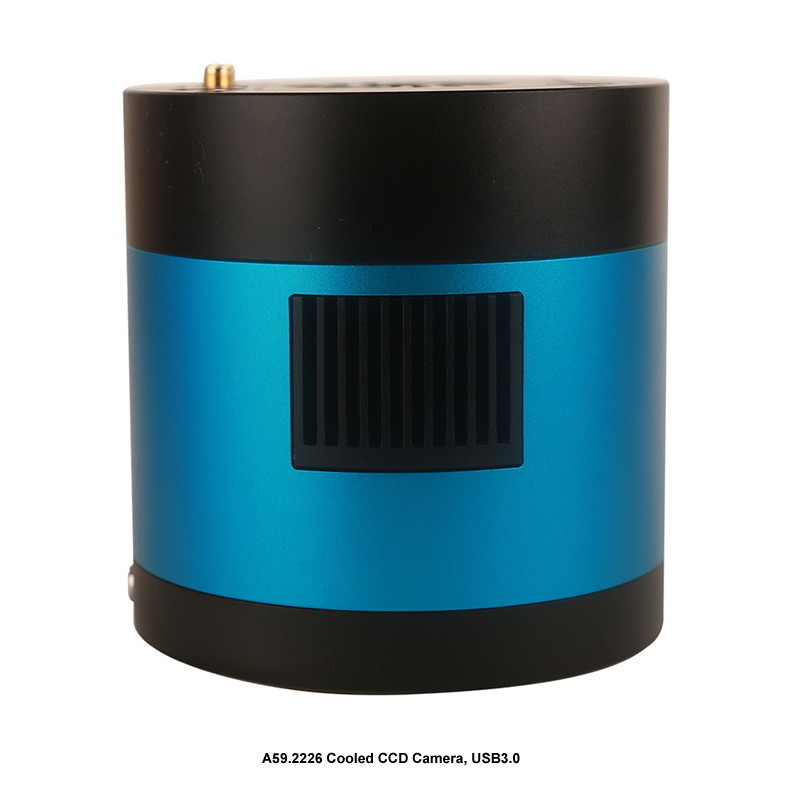

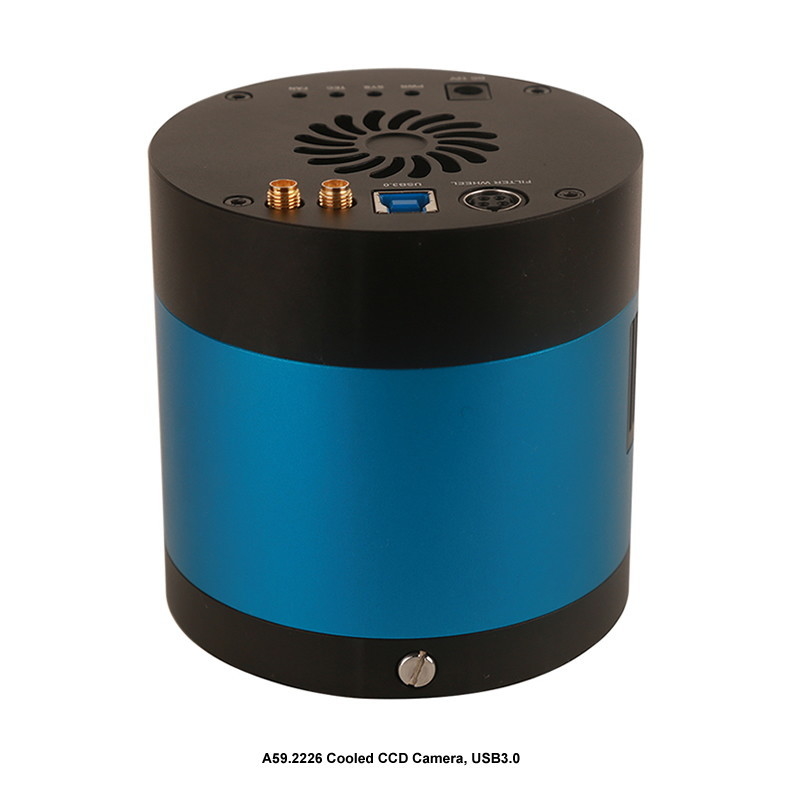

Dimension of A59.2226 Series Camera
A59.2226 series USB3.0 CCD Camera body, made from tough, alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Packing List of A59.2226 Series Camera
Standard Outfit
A	Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton), not shown in the photo
B	Gift box L:28cm W:23cm H:15cm (2.8Kg/ box); Carton size:L:28.2cm W:25.2cm H:16.7cm
C	Digital camera
D	Power adapter: input: AC 100~240V 50Hz/60Hz, output: DC 5V 4.5A
E	High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m
F	CD (Driver & utilities software, Ø12cm)
Optional Accessory
G	Focus Adjustable Eyepiece Adapter	For Microscope	0.37x, C-Mount to Dia.23.2mm	A55.2202-A37
			0.50x, C-Mount to Dia.23.2mm	A55.2202-A50
			0.75x, C-Mount to Dia.23.2mm	A55.2202-A75
		For Telescope	0.37x, C-Mount to Dia.31.75mm	A55.2204-A37
			0.50x, C-Mount to Dia.31.75mm	A55.2204-A50
			0.75x, C-Mount to Dia.31.75mm	A55.2204-A75
H	Focus Fixed Eyepiece Adapter	For Microscope	0.37x, C-Mount to Dia.23.2mm	A55.2202-F37
			0.50x, C-Mount to Dia.23.2mm	A55.2202-F50
			0.75x, C-Mount to Dia.23.2mm	A55.2202-F75
		For Telescope	0.37x, C-Mount to Dia.31.75mm	A55.2204-F37
			0.50x, C-Mount to Dia.31.75mm	A55.2204-F50
			0.75x, C-Mount to Dia.31.75mm	A55.2204-F75
I	Adaptor Rings Dia.23.2mm to 30.0mm For 30.0mm Microscope Eyepiece Tube			A55.2203-30
J	Adaptor Rings Dia.23.2mm to 30.5mm For 30.5mm Microscope Eyepiece Tube			A55.2203-30.5
K	External Trigger Control Line
L	Calibration Stage Micrometer	X=0.01mm/100Div.
		X,Y=0.01mm/100Div
		X=0.01mm/100Div., 0.10mm/100Div
