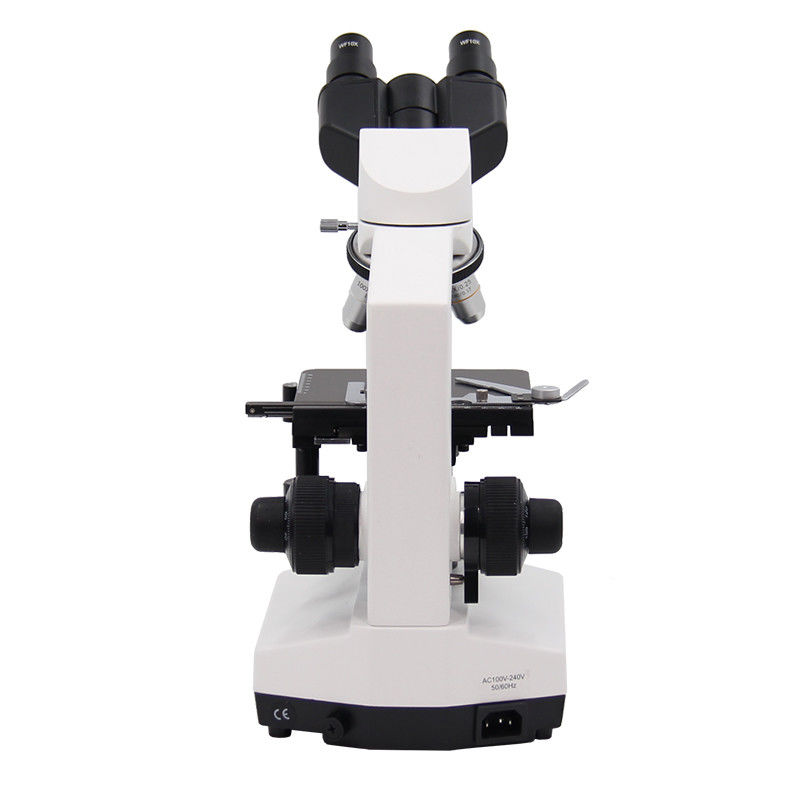

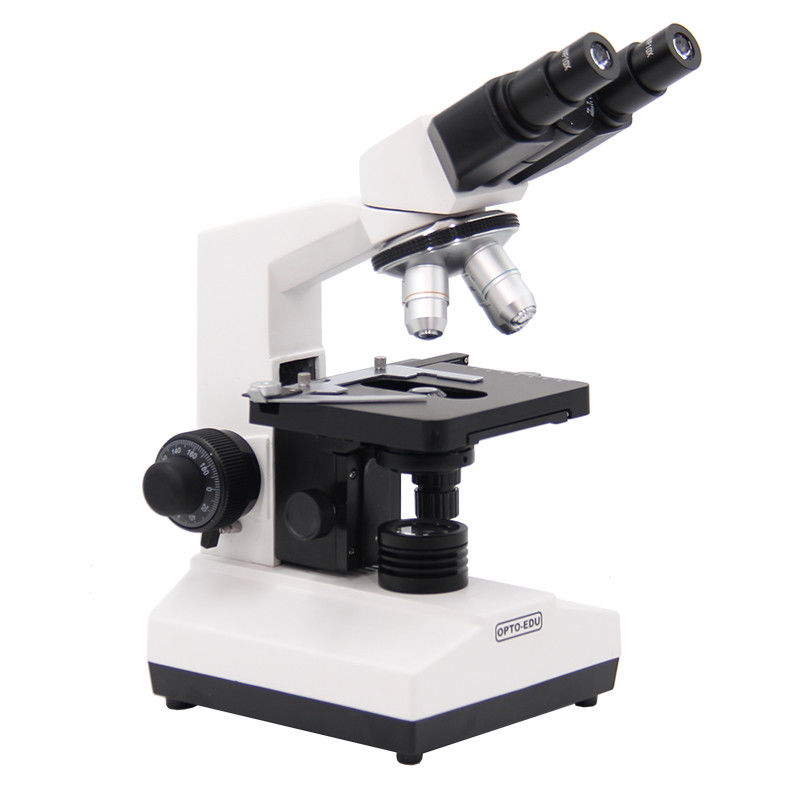

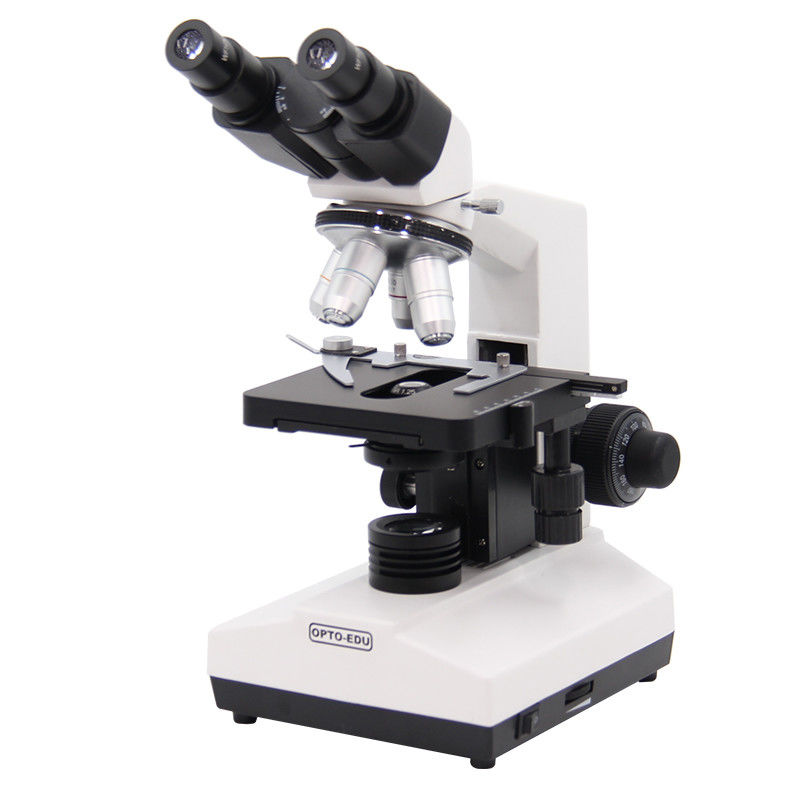

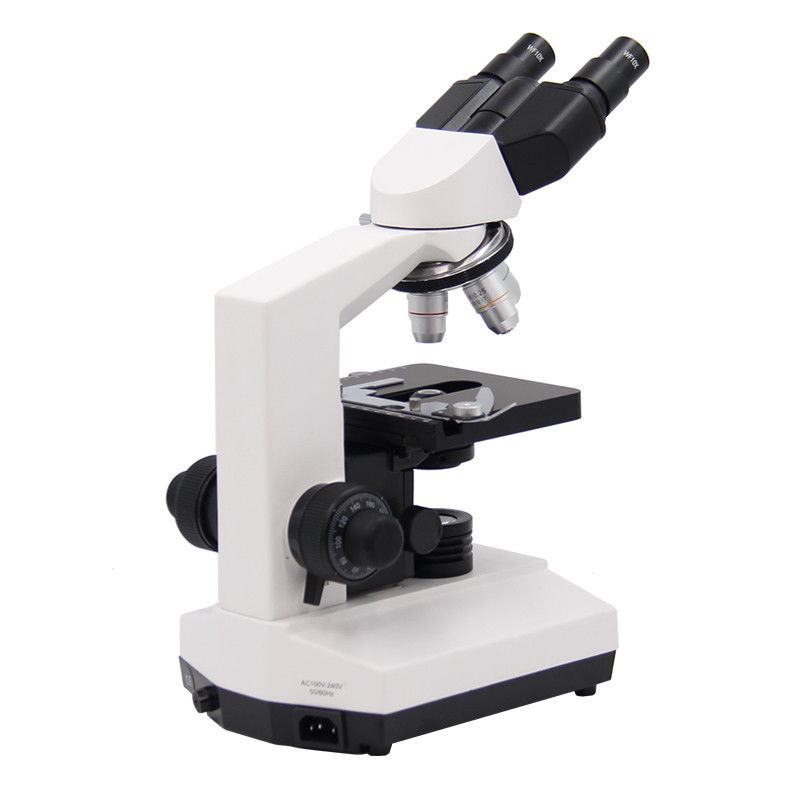

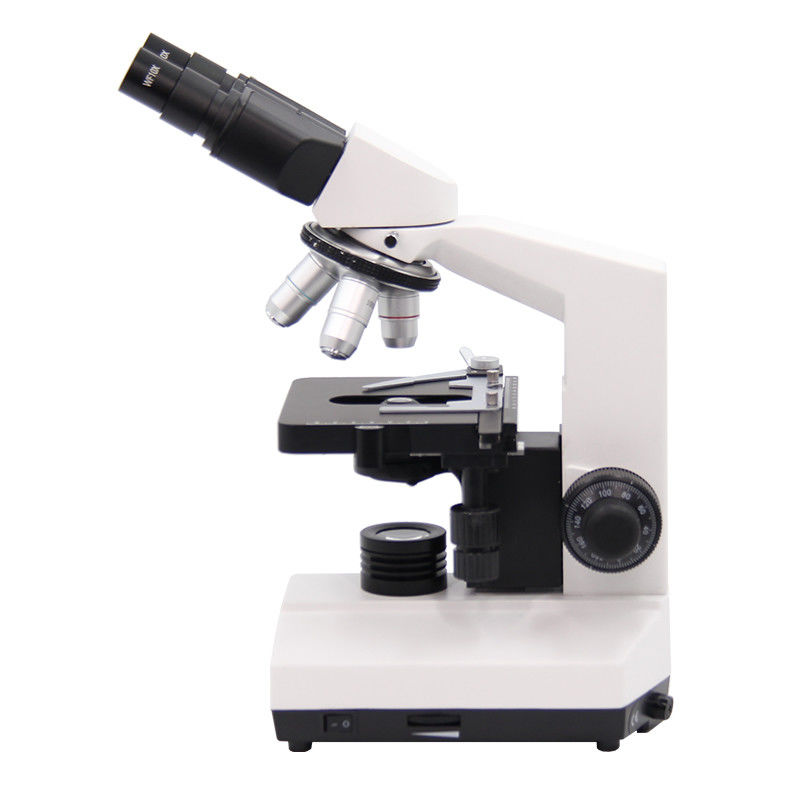

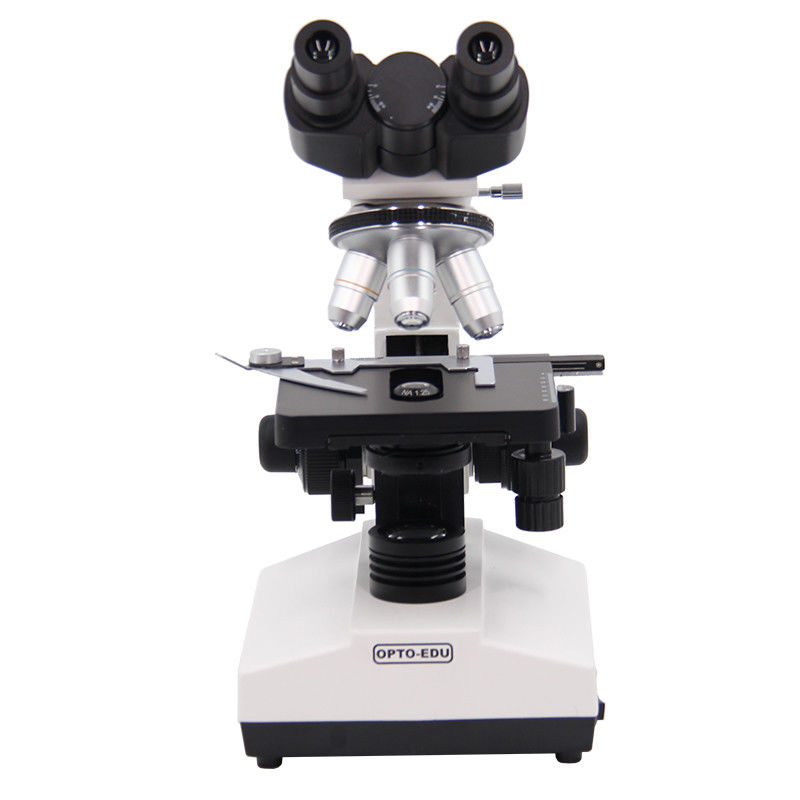

Cheapest xsz-107bn 40X-1600X BInocular OPTO-EDU A11.1522-D Student Biological Microscope
Cheapest Classic Model XSZ-107BN
WF10x Eyepiece, Achromatic 4x 10x 40x100x Objectives
Double Layer Mechanical Stage 142x132mm
Halogen Lamp 6V/20W Adjustment
A11.1522 Compound Biological Microscope Model, Can Be Widely Used In Medical And Sanitary Establishments, Laboratories, Institutes, Network Of Agricultural Research, Colleges And Universities For Clinical Microscope Inspections And Used As Instructional Equipment. They Also Can Be Used In Research Work Such As Biology, Bacteriology, Cytology, Histology And Pharmaceutical Chemistry.
A 11.1522 Specification |
A |
B |
C |
D |
Total Magnification |
40X~1600X |
● |
● |
● |
● |
Eyepiece |
WF10X |
● |
● |
● |
● |
WF16X |
● |
● |
● |
● |
Head |
Monocular,30° Inclined,360° Rotatable |
● |
- |
- |
- |
Sliding Binocular,45° Inclined,360° Rotatable(Black Head) |
- |
● |
- |
- |
Sliding Trinocular,45° Inclined,360° Rotatable |
- |
- |
● |
- |
Compensation Free Binocular,45° Inclined,360° Rotatable(White Head) |
- |
- |
- |
● |
Objectives |
4x |
● |
● |
● |
● |
10x |
● |
● |
● |
● |
40x |
● |
● |
● |
● |
100x |
● |
● |
● |
● |
Nosepiece |
Quadruple |
● |
● |
● |
● |
Focusing |
Coaxial Coarse And Fine Focus Adjustment, Range:30mm |
● |
● |
● |
● |
Stage |
Double Layer Mechanical Stage 142mmx132mm, Moving Range : 75mmx45mm |
● |
● |
● |
● |
Condenser |
ABBE NA1.25 Condenser With Diaphragm And Filter |
● |
● |
● |
● |
Illuminator |
Halogen Lamp 6V/20W Adjustment |
● |
● |
● |
● |
