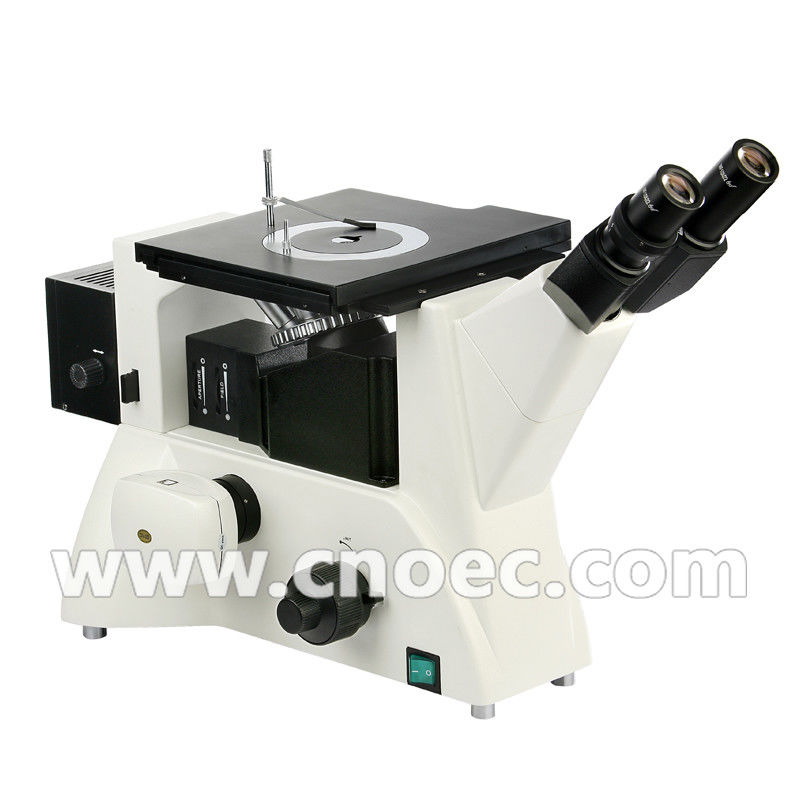

APO Metallurgical Microscopes Bright Field Microscopes Rohs CE A13.0210
Specifications:
|
Specification
|
A13.0210 Metallurigical Microscope
|
A
|
B
|
|
Eyepiece
|
Wide field WF10X(field number:Φ22mm) |
| Infinity Plan Achromatic Objective |
PL L10X/0.25 (Work distance):20.2 mm(Equipped with bright field objectives) |
●
|
|
| PL L20X/0.40 (Work distance):8.80 mm(Equipped with bright field objectives) |
●
|
|
| PL L50X/0.70 (Work distance):3.68 mm(Equipped with bright field objectives) |
●
|
|
| PL L100X/0.85 (Dry)Work distance):0.4 mm(Equipped with bright field objectives) |
●
|
|
| PL L5X/0.12 BD (Work distance):9.7 mm(Equipped with bright & dark field objectives) |
|
●
|
| PL L10X/0.25 BD (Work distance):9.30 mm(Equipped with bright & dark field objectives) |
|
●
|
| PL L20X/0.40 BD (Work distance):7.23mm(Equipped with bright & dark field objectives) |
|
●
|
| PL L50X/0.70 BD (Work distance):2.50 mm(Equipped with bright & dark field objectives) |
|
●
|
|
Eyepieces Tube
|
Inclination angle is 45°and interpupillary distance is 53~75mm. |
|
Focus System
|
Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm |
| Nosepiece |
Quintuple (Backward ball bearing inner locating) |
|
Stage
|
Mechanical stage,overall size:242mmX200mm,moving range: 30mmX30mm |
| Rotundity and rotatable stage size: maximal measurement is Ф130mm and minimal clear aperture is less then Ф12mm. |
|
Illumination System
|
6V30W halogen and brightness enable control. |
●
|
|
| 12V50W halogen and brightness enable control. |
|
●
|
| Integrated field diaphragm , aperture diaphragm and puller type polarizer. |
| Equipped with frosted glass and yellow ,green and blue filters |
|
Optional Accessories
|
Item NO.
|
| Eyepiece |
Dividing eyepiece(field number:Φ22mm) 0.10mm/Div |
A51.0205-G10B
|
| Objective |
PL L5X/0.10 (Work distance):26.12 mm |
Equipped with bright field objectives |
A5M.0235-5
|
| PL L40X/0.60 (Work distance):3.68 mm |
A5M.0235-40
|
| PL L60X/0.70 (Work distance):3.18 mm |
A5M.0235-60
|
| PL L80X/0.80 (Work distance):1.28 mm |
A5M.0235-80
|
| PL L40X/0.60 BD (Work distance):3.00 mm |
Equipped with bright & dark field bjectives |
A5M.0237-40
|
| PL L60X/0.70 BD (Work distance):1.90 mm |
A5M.0237-60
|
| PL L80X/0.80 BD (Work distance):0.80mm |
A5M.0237-80
|
| PL L100X/0.85 BD (Work distance):0.22 mm |
A5M.0237-100
|
| CCD Adapter |
0.5X |
A55.0202-4
|
| 1X |
A55.0202-2
|
| 0.5X with dividing 0.1mm/Div |
A55.0202-3
|
| Digital Camera Adapter |
CANON EF digital SLR camera adapter |
A55.0204-01
|
|
