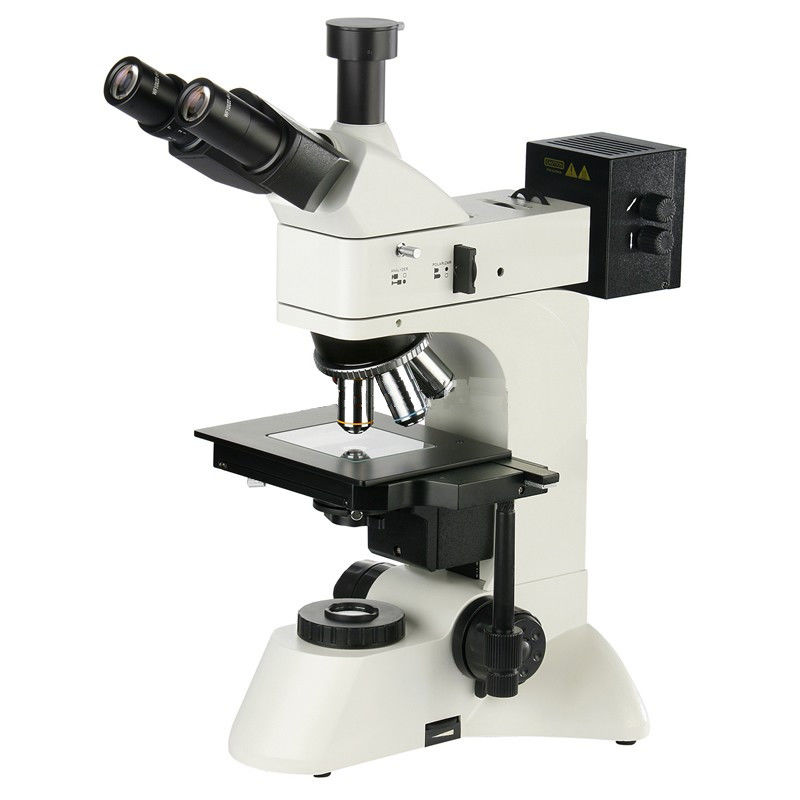

50X - 400X Cordless Metallurgical Optical Microscope A13.0211
Description:
New in 2009!
A13.0211 upright Bright/Dark field Transmitted/Reflected light metallurgical microscope, is a kind of multifunction industry inspecting microscope. It is equipped with bright or dark field objectives, wide field eyepieces and integrated polarization observation device, the Kohler illuminator is used in the transmitted and reflected illuminating system, the whole field is clear and uniformity. It is suitable for inspecting, such as semi-conductor silicon wafer, LCD floor plate, electrociucuit plate, solid powder and all kind of industry sample that translucent or opaque. It is the ideal instruments in research work in biology, metallography, mineralogy, precision engineering, electronics, ets.
--UIS optical system and modularization function design
--Long working distance bright or dark field plan objectives (no cover glass), the fild is wide and clear
--Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of the focusing: 2um
--Maximal movement of stage is about 30mm
--Integrated polarization observation device, the polarizer can be circled 360 degree
--The reflecting illuminator is 12V50W halogen lamp and the lamp box cover can be revolved, replacing lamp facility and safety.
-- The transmitted illuminator is 12V30W halogen lamp and adding radiator
--Trinocular head can be observation for eyepieces and microphotography in 100% light flux, suits for the dark field microphotography.
Specifications:
|
A13.0211 Upright Bright/Dark Field Transmitted/Reflected Light Metallurgical Microscope
|
|
Eyepiece
|
WF10X(Φ22mm)
|
|
Objective
|
Infinity plan bright/dark field, long working distance (no cover glass) PLL5x/0.12BD, W.D.9.70mm
|
|
Infinity plan bright/dark field, long working distance (no cover glass) PLL10x/0.25BD, W.D.9.3mm
|
|
Infinity plan bright/dark field, long working distance (no cover glass) PLL20x/0.40BD, W.D.7.2mm
|
|
Infinity plan bright/dark field, long working distance (no cover glass) PLL40x/0.60BD, W.D.3.0mm
|
|
Head
|
Trinocular, inclination of 30°, built-in analyzer and swithching freely
|
|
Reflected Illumination
|
12V 50W halogen lamp with brightness control
|
| Built-in field, aperture diaphragm, and (YBG ground glass) switching device, push-pull type polarizer |
| Transmited Illumination Unit |
Abbe condenser N.A.=1.25, Rack & pinion adjustable
|
|
Blue filter and ground glass
|
|
Collector for illumination with halogen lamp (With filed diaphragm)
|
|
12V 30W, halogen lamp, adjustable brightness
|
|
Focus System
|
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2um |
|
Nosepiece
|
Quintple( back ball bearing inner locating)
|
|
Stage
|
Double layer mechanical, size 210x140mm, moving range 75x50mm
|
|
|
Optional Accessories
|
Item No. |
| Eyepiece |
Divding 10x/18mm, 0.1mm/Div |
A51.0205-G10A
|
|
Objective
|
Infinity plan bright/dark field, long working distance (no cover glass) PLL50x/0.70BD, W.D.2.5mm |
A5M.0237-50
|
| Infinity plan bright/dark field, long working distance (no cover glass) PLL60x/0.70BD, W.D.1.9mm |
A5M.0237-60
|
| Infinity plan bright/dark field, long working distance (no cover glass) PLL80x/0.70BD, W.D.1.25mm |
A5M.0237-80
|
| Infinity plan bright/dark field, long working distance (no cover glass) PLL100x/0.70BD, W.D.0.22mm |
A5M.0237-100
|
|
Filter
|
Green filter
|
A56.0209-2
|
|
Yellow filter
|
A56.0209-3
|
| Nosepiece |
Quintuple backward ball bearing inner locating |
032002
|
|
CCD Adapter
|
0.4X
|
A55.0202-1
|
|
0.5X
|
A55.0202-4
|
|
1X
|
A55.0202-2
|
|
0.5X with dividing 0.1mm/Div
|
A55.0202-3
|
|
Digital Camera Adapter
|
CANON EF digital SLR camera adapter
|
A55.0204-01
|
|
