8x - 50x Trinocular Stereo Zoom Microscope with Track Stand LED Light A23.1501
A23.1501 Series zoom stereo microscope:
-- Well-coated optical system can provide sharp & clear images with extremely flatness and contrast.
-- Ergonomic design can make users feel comfortable after long-time operation
-- Standard zoom magnification 8X-50 with zoom ratio 1:6.3.Standard working distance is 115mm. With
additional objectives, it can be increased to 211mm.
-- Configured with WF10X/22mm eyepiece. Each eyepiece allows diopter adjustment to suit different users.
-- Full set of eyepiece, auxiliary objectives and other accessories can fulfill different needs.
|
A23.1501 Zoom Stereo Microscope
|
B1
|
B2
|
B3
|
B4
|
T1
|
T2
|
T3
|
T4
|
|
Head
|
Binocular head, 45° inclined, 360° rotatable, Interpupillary range from 52mm-75mm
|
o
|
o
|
o
|
o
|
|
|
|
|
|
Trinocular head, 45° inclined, 360° rotatable, Interpupillary range from 52mm-75mm . Distribution is 3:7 for trinocular
|
|
|
|
|
o
|
o
|
o
|
o
|
| Magnification |
Standard Zoom Magnification: 8x-50x. With additional eyepiece & objectives, can reach 4x-200x. |
|
Eyepiece
|
WF10x/22mm
|
| Working Distance |
Standard Working Distance is 115mm. With additional objectives can be up to 45mm-211mm. |
|
Auxiliary Objective
|
0.5x/210mm; 0.7x/130mm; 2x/45mm |
|
Focusing
|
Coarse Focusing Knob with tension adjustable. Adjusting range 100mm |
| Base |

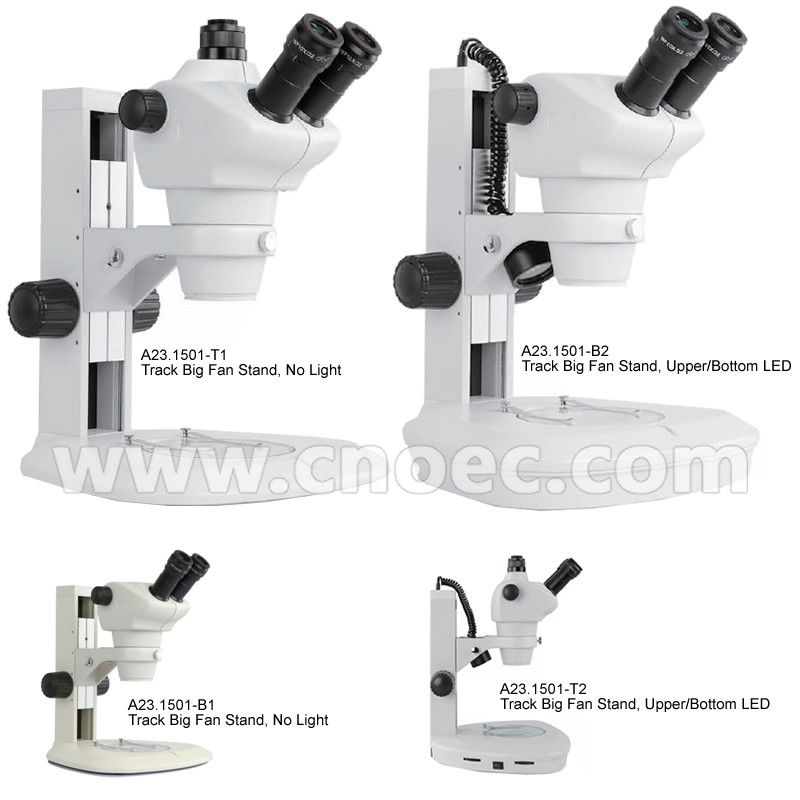

Track Big Fan Stand, No Light |
o |
|
|
|
o |
|
|
|
| Track Big Fan Stand, Upper/Bottom LED |
|
o |
|
|
|
o |
|
|

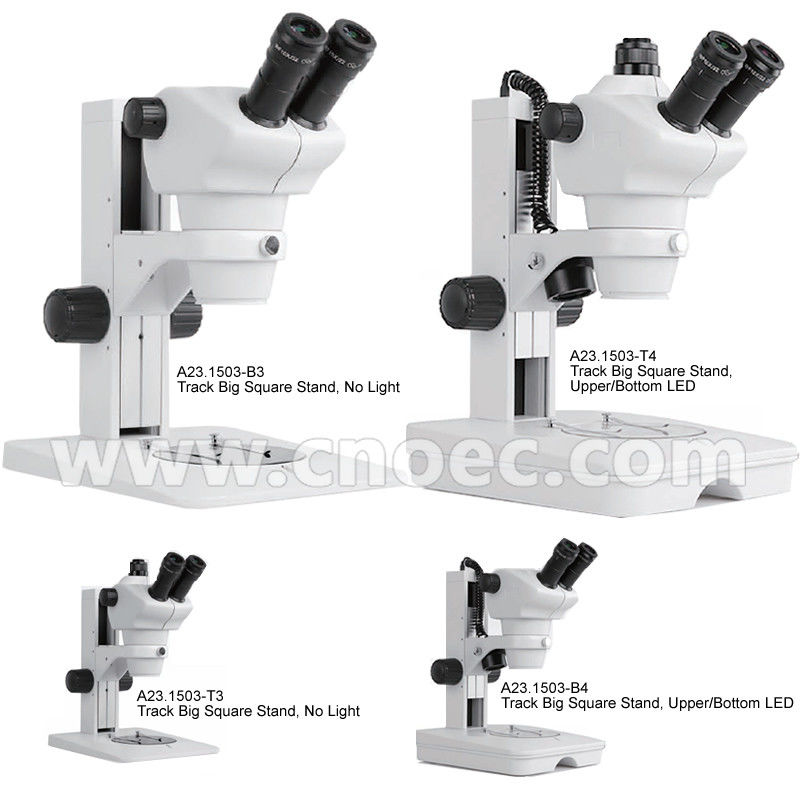

| Track Big Square Stand, No Light |
|
|
o |
|
|
|
o |
|
| Track Big Square Stand, Upper/Bottom LED |
|
|
|
o |
|
|
|
o |
|

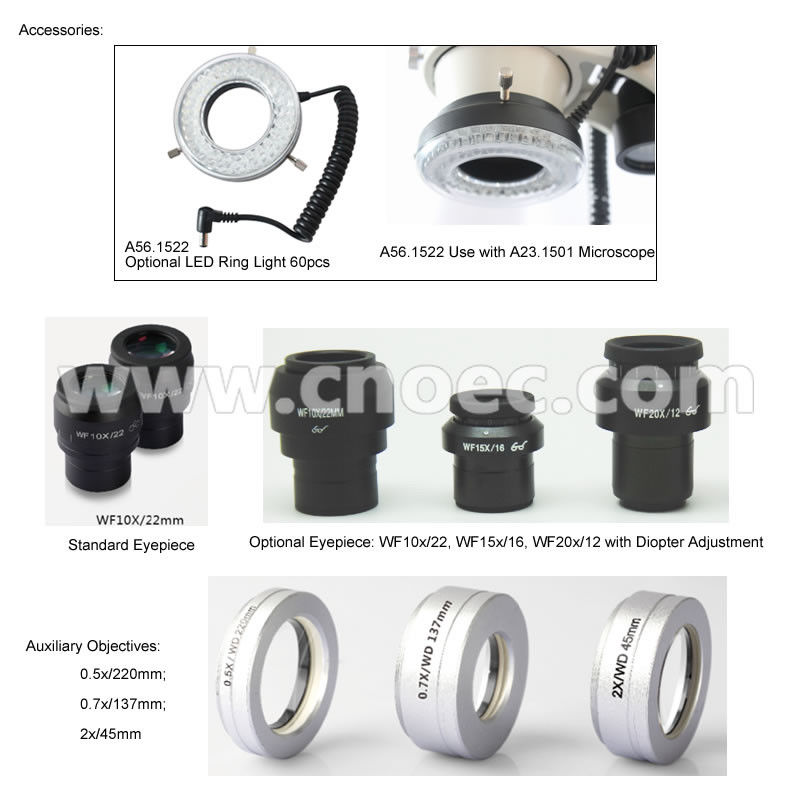

Optional Accessories
|
Item No.
|
|
Eyepiece
|
WF10x/22mm, Diopter adjustment D-8~+5 |
A51.1522-10 |
| WF15x/16mm, Diopter adjustment D-8~+5 |
A51.1522-15 |
| WF20x/12.5mm, Diopter adjustment D-8~+5 |
A51.1522-20 |
|
Light
|
LED Ring Light , 60pcs
|
A56.1522 |
|
