▶ Trinocular Head
Trinocular Ultra Wide Field, FN=23 Light Split: (E50/P50) |
|
▶ Diopter Adjustable Eyepiece
10X/FN=23mm,With Eyecup ,-2~+8° |
|
|
▶ Infinity Achromatic Objective
Infinity Plan Achromatic Objective: 4x,10x,20x,40x,100x |
|

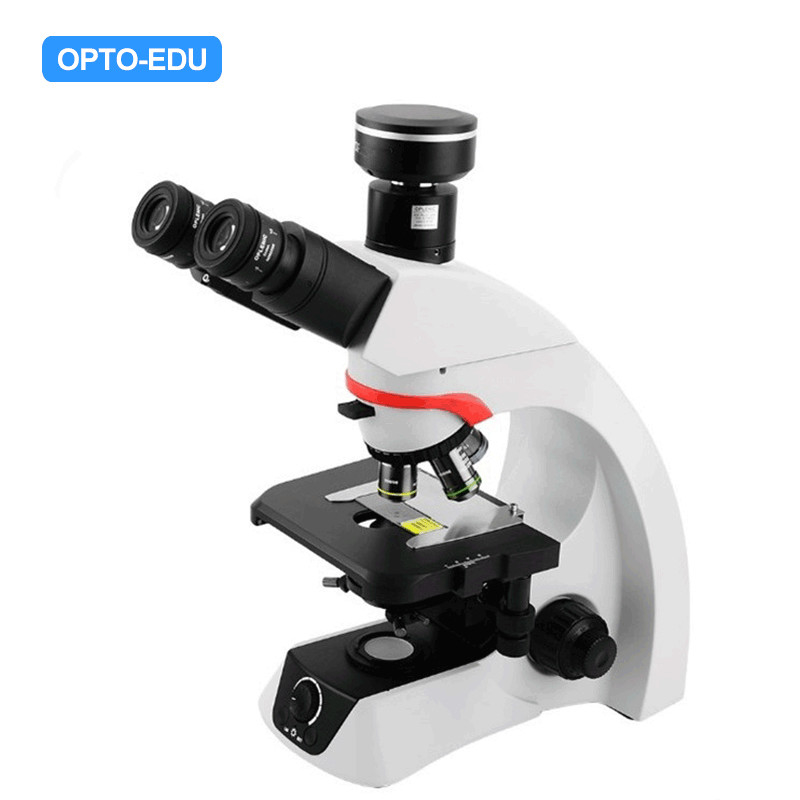

| Item | A12.2263 Laboratory Microscope Specification | Model No. | A12.2263 |
| Optical System | Infinity Plan Mutual Achromatic Optical System, Confocal: 45mm | ||
| Focusing System | Focusing Range: 25mm,Coaxial Coarse And Fine Focusing System With Safety Stop Lock Ring & Tension Adjustable, Coarse Stroke17.6mm, Fine division 0.1m, Fine Scale: 1μm | ||
| Head | Trinocular Wide Field Head, Light Split: (50/50) | A53.2201-C63T | ● |
| Eyepiece | Wide Field Eyepiece Diopter Adjustable, 10X/FN=23mm,With Eyecup ,-2~+8° | A51.2201-1023 | ● |
| Nosepiece | 5 Holes Coded Inwards Nosepiece | ● | |
| Objective | Infinity Plan Achromatic Biological Objective: 4x,10x,20x,40x,100x | A52.2202 | ● |
| Infinity Plan Semi-APO FL Objective: 4x,10x,20x,40x,100x | ○ | ||
| Infinity Plan APO FL Objective: 4x,10x,20x,40x,100x | ○ | ||
| Infinity Plan Achromatic Metallurgical Objective: 5x,10x,20x,50x,100x | ○ | ||
| Infinity Plan Semi-APO Metallurgical Objective: 5x,10x,20x,50x,100x | ○ | ||
| Infinity Semi-APO Metallurgical LWD Objective: 5x,10x,20x,50x,100x | ○ | ||
| Infinity Plan APO Metallurgical Objective: 5x,10x,20x,50x,100x | ○ | ||
| Working Stage | Moving Range: 76 mm × 55 mm,Nano Anti-Wear Ceramic Coating Plate,Right Hand XY Moving Knob,With Damping Adjustment Ring | ● | |
| Condenser | Abbe Condenser,N.A=1.1,4X~100X | ● | |
| Swing-out Condenser N.A=0.9,1.25X~100X(Support 1.25X~4X when swing out) | ○ | ||
| Multi-Function Condenser,Surpports Bright Field, Dark Field, Polarizing | ○ | ||
| Achromatic Aplanatic Condenser,N.A=1.4,10X~100X | ○ | ||
| Dark Field (Dry),N.A=0.92,10X~100X | ○ | ||
| Dark Field (Oil),N.A=1.4,10X~100X | ○ | ||
| Illumination System | Built-in Transmit Kohler Illumination,With Light Intensity Management Function,SUPERMLEDTM Large Power Wide Color Gamut LED Light House,60000 Hours,4500K Color TemperatureECO Auto-Off, Body-swithcing Reflect Illumination, Body Power Output 5V/2A | ● | |
| Reflection System | |||
| Reflect Metallurgical Illuminator,LED White Light,Brightness Field Reflection Module,With Polarizing Slot | ○ | ||
| Reflect Fluorescent Illuminator,LED Fluorescent,Surpports DAPI/FITC/TxRED (Single Color, Double Color And Triple Color) | ○ | ||
| Video Adapter | 1X C-Mount,For 2/3”~ 4/3”Sensor | ○ | |
| 0.63X C-Mount,For 1/1.8”~ 2/3”Sensor | ○ | ||
| 0.5X C-Mount,For 1/2”~ 1/1.8”Sensor | ○ | ||
| Camera | 5.2 Million Pixel CMOS Camera,Including OPLENIC Pro Software of Image Acquisition, Measurement and Processing | ○ | |
