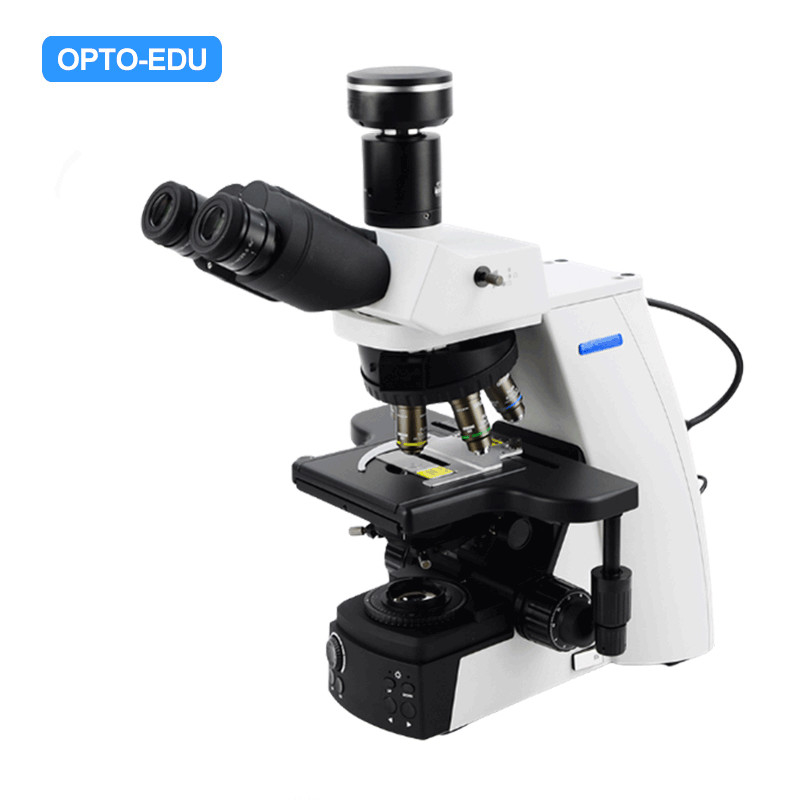

▶ Trinocular Head
Trinocular Ultra Wide Filed, FN=26.5 Light Split: (E0/P100, E50/P50, E100/P0) |
|
▶ Diopter Adjustable Eyepiece
10X/FN=23mm,With Eyecup ,-2~+8° |
|
|
▶ Infinity Achromatic Objective
Infinity Plan Achromatic Objective: 4x,10x,20x,40x,100x |
|
| Item | A12.2220 Laboratory Microscope, A13.2220 Metallurgical Microscope Specification | Model. No | A12.2220 | A13.2220 | |
| Optical System | Infinity Plan Mutual Achromatic Optical System,Confocal: 60mm | ||||
| Focusing System | Focusing Range: 25mm,Coaxial Coarse And Fine Focusing System With Safety Stop Lock Ring & Tension Adjustable, Coarse Stroke17.6mm, Fine division 0.1m, Fine Scale: 1μm | ||||
| Head | Ultra Wide Field Trinocular Head, Light Split: (0/100,50/50,100/0)；FN=26.5 | A53.2201-FTW | ● | ○ | |
| Ultra Wide Field Trinocular Head, Light Split: (50/50)；FN=26.5；Upright Image；Head Inclined | A53.2201-FTWA | ○ | ● | ||
| Wide Field Trinocular Head, Light Split: (50/50)；FN=25；Upright Image；Head Inclined:0~45° | ○ | ○ | |||
| Wide Field Trinocular Head, Light Split: (0/100,50/50)；FN=23 | ○ | ○ | |||
| Eyepiece | Wide Field Diopter Adjustable,10X/FN=23mm,With Eyecup ,-2~+8° | A51.2201-1023 | ● | ○ | |
| Ultra Wide Field Diopter Adjustable,10X/FN=25mm,With Eyecup,-2~+8° | A51.2201-1023 | ○ | ● | ||
| Wide Field Diopter Adjustable,10X/FN=25mm,With Eyecup,-2~+8° | ○ | ○ | |||
| Wide Field Diopter Adjustable,10X/FN=26.5mm,With Eyecup ,-2~+8° | ○ | ○ | |||
| Nosepiece | 5 Holes Coded Manual Operating Nosepiece, M25 | A54.2202-11 | ● | ||
| 5 Holes Coded Manual Operating Nosepiece, M32 | A54.2202-12 | ● | |||
| 5 Holes Coded Motorized Nosepiece | ○ | ○ | |||
| Objective | Infinity Semi-APO BD Objective: 5x,10x,20x,50x,100x | A5M.2227 | ○ | ● | |
| Infinity Plan Achromatic Objective: 4x,10x,20x,40x,100x | A52.2210 | ● | ○ | ||
| Infinity Semi-APO Biological Objective: 4x,10x,20x,40x,100x | ○ | ○ | |||
| Infinity Semi-APO FL Objective: 4x,10x,20x,40x,100x | ○ | ○ | |||
| Infinity Apochromatic FL Objective: 4x,10x,20x,40x,100x | ○ | ○ | |||
| Infinity Plan Achromatic Metallurgical Objective: 5x,10x,20x,50x,100x | ○ | ○ | |||
| Infinity Plan Semi-APO Metallurgical Objective: 5x,10x,20x,50x,100x | ○ | ○ | |||
| Infinity Semi-APO Metallurgical LWD 95mm Objective: 5x,10x,20x,50x,100x | ○ | ○ | |||
| Infinity Apochromatic Metallurgical Objective: 5x,10x,20x,50x,100x | ○ | ○ | |||
| Working Stage | Moving Range:76 mm × 55 mm,3"X2", Nano Anti-Wear Ceramic Coating Surface,Right Hand XY Moving Knob,With Damping Adjustment Ring | A54.2204-2 | ● | ○ | |
| 4"X4", Nano Anti-Wear Ceramic Coating Surface,Right Hand XY Moving Knob | A54.2204-3 | ○ | ● | ||
| Condenser | Abbe Condenser,N.A=1.1,4X~100X | ○ | ○ | ||
| Swing-out Condenser N.A=0.9,1.25X~100X(Support 1.25X~4X when swing out) | A56.2201 | ● | ● | ||
| Multi-Function Condenser,Surpports Bright Field, Dark Field, Polorizing,N.A=1.1,4X~100X | ○ | ○ | |||
| Achromatic Aplanatic Condenser,N.A=1.4,10X~100X | ○ | ○ | |||
| Dark Field (Dry),N.A=0.92,10X~100X | ○ | ○ | |||
| Dark Field (Oil),N.A=1.4,10X~100X | ○ | ○ | |||
| Specimen Clip | Specimen Clip, Left Hand, Double Slide Holder | A54.2204-C1 | ● | ||
| Metallurgical Specimen Clip,4"X4"Manaul Operating Glass Plate, For Tansmitation And Reflection | A54.2204-C2 | ● | |||
| Illumination System | Built-In Kohler Illumination System, ECO, Brightness Memories-LIM Control Function, Self-Power Supply (Power Output 18V/1A) & Support Body Switching To Control Reflection Illumination, SUPERMLEDTM Large Power(18W) Wide Color Gamut LED Light House, LIM- Brightness Density Adjustment Function And ECO (Power Save Function), Lifetime: 60000 Hours,4500K Color Temperature | ● | ● | ||
| Reflection System | |||||
| EPI Reflect Illuminator, with BF & DF Module, With Polarizing Slot | A5M.2201-LV1 | / | ● | ||
| Reflect Metallurgical Illuminator,LED White Light,Brightness Field Reflection Module,With Polarizing Slot | ○ | / | |||
| Reflect Fluorescent Illuminator,LED Fluorescent,Surpports DAPI/FITC/TxRED (Single Color, Double Color And Triple Color) | ○ | / | |||
| Video Adapter | 1X C-Mount,For 2/3”~ 4/3”Sensor | ○ | ○ | ||
| 0.63X C-Mount,For 1/1.8”~ 2/3”Sensor (For A53.2201-STWA Use) | A55.2201-63xA | ○ | ● | ||
| Camera | 6.3 Million Pixel CMOS Camera,Including OPLENIC Pro Software of Image Acquisition, Measurement and Processing | A59.2272-6.3M | ○ | ○ | |
