▶ Trinocular Head Trinocular Ultra Wide Filed, 30 °Inclined, Rotatable Upright Image, Light Split: (E0/P100, E50/P50), And Another Version: (E0/P100, E50/P50, E100/P0) |
▶ Diopter Adjustable Eyepiece Interpupillary:50mm-80mm, Diopter Adjustable -2~+8°With Eyecup, There are three specifications Of Filed Number (FN = 23mm, FN = 25mm, FN = 26.5mm), Dia.30mm. |
![]() |
![]() |
▶ Nosepiece 6 Holes Coded Manual Operating Nosepiece, RMS
▶ Working Stage Manual Operating Stage,3"X2",Nano Anti-wear Ceramic Coating Stage, Right-handed XY Coaxial Adjustment with Damping Adjustment Ring |
▶ Achromatic Objective Infinity Plan Achromatic Objective 4x, 10x, 20x, 40x, 100x |
![]() |
![]() |
▶ Condenser Abbe Condenser,N.A=1.1,4X~100X
▶ Light Source SUPERMLEDTM Large Power Wide Color Gamut LED Light House,60000 Hours,4500K Color Temperature |
▶ Button Control Magnification Switching By touching the button on the body, the magnification of the objective can be switched easily, avoiding pollution, wear, and looseness caused by long-term contact with the objective lens. |
![]() |
![]() |
▶ Metallurgical Illuminator EPI Reflect Illumination, with BF & DF Module, With Polarizing Slot |
▶ Fluorescent Illuminator Turret Epi-Fluorescent Illumination, 4 Holes, Build-In UV, Blue, Green Excitation Module, With Polarizing Slot |
![]() |
![]() |
High-Precision Electric Platform |
Encoded Electric Z-axis Accessories The encoded electric Z-axis accessories are composed of a dual-axis stepper motor and a multi-turn encoder, with a minimum step size of 0.8 degrees (360 degrees with 200 subdivisions). The encoder can provide real-time feedback of Z-axis coordinate data. The installation is simple and does not require any damage to the body structure. Only 2 screws are needed to complete the installation, and the structure is firm. |
![]() |
![]() |
Multifunctional computer drive It can achieve driving control of components such as the electric objective turntable (R), electric stage (XY), electric Z-axis (Z), camera external trigger, etc. It can communicate with the computer through RS232 and USB ports to achieve software control and programmed action processing. |
Electric microscope joystick controller |
![]() |
▶ Illumination System Lumi Cite Ultra-High Brightness, SUPERMLED High-Power And Wide Color Gamut LED Light,60,000 Hours,4500K Color Temperature, Sunlight Simulated |
![]() |
Tool-free disassembly and assembly of reflective filter blocks.
Lens anti-mildew treatment |
Excellent Optical Properties
Maintenance-free long-life light source
Antibacterial coating
Automatic light intensity management function:
USB output to computer control |
![]() |
Tissue slice observation does not require cumbersome operations and complex settings No special settings are required, and the factory mode can achieve perfect observation of tissue sections stained with conventional H. E staining; the specially designed simulated full-spectrum SUPERMLEDτm high-power light source combined with the Kohler lighting system can easily obtain clear images with equal brightness, high contrast, and soft color temperature from 4x to 100x observation, and can easily distinguish stained colors such as blue, purple, and pink that are difficult to restore with high fidelity under ordinary microscopes
High-contrast objective lenses for observing blood cells, chromosomes, and microorganisms The new ECGO infinite bidirectional chromatic aberration calibration system objective lens with a new optical architecture has three zoom distance designs of 45mm, 60mm, and 95mm, which can balance high resolution and long working distance, as well as special biology-specific 40x and 100x coverslip-free objective lenses, making it easier for users to capture microscopic structures of bacteria and chromosomes more clearly during coverslip-free sample detection.
A tool for observing details of animal and plant packaging - dark field condenser |
Easy acquisition of high signal-to-noise ratio fluorescent images
Observation of polymer materials, starch, crystals, cosmetics, and traditional Chinese medicine - polarizing For the above applications, high-performance polarizing accessories are essential. We use a seventh-generation thin polarizer with a higher extinction ratio and no change in color temperature to improve the orthogonal background contrast. The standard 45mm polarizer can be placed at the light source outlet, and the 30mm polarizer can be placed in the DIC slot of the objective lens turntable. It is extremely convenient to push in and pull out, and there is no need to increase the cost of purchasing additional slot accessories. |
![]() |

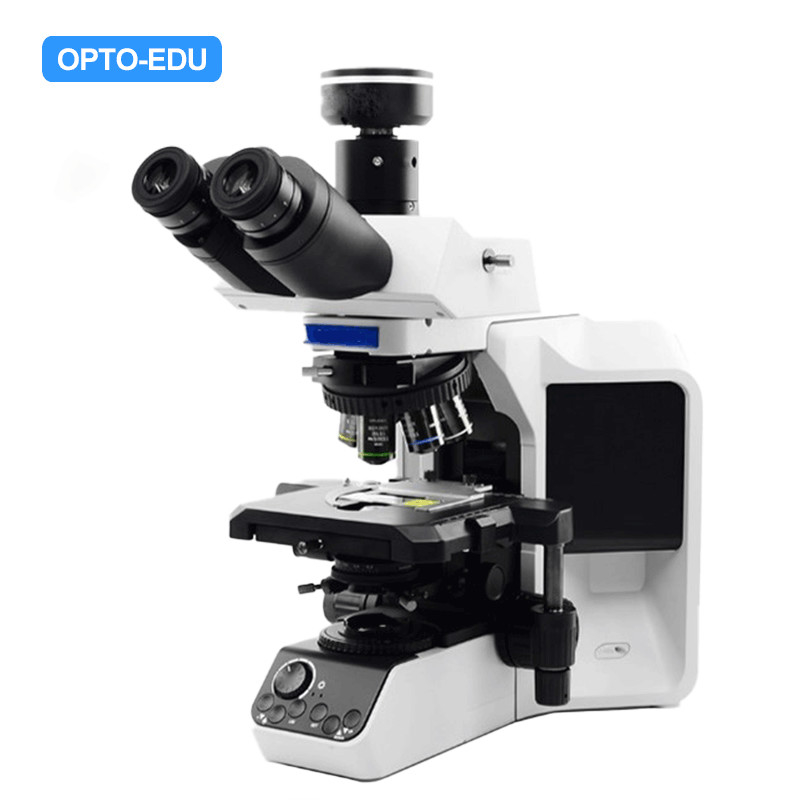

Item. | A12.2253 Laboratory Biological Microscope Series | A12.2253 Biological |
A16.2253 Fluorescent |
A13.2253 Metallurgical |
Model. No |
Optical System | ECGO Infinity Plan Mutual Achromatic Optical System, Confocal: 45mm | BF,DF,PH,POL | BF,FL | BF/DF,POL,DIC | |
Main Body Focusing Transmit Light |
S53F Main Body, --Coaxial Coarse & Fine Focusing, With Safety Stop Lock Ring & Tension Adjust Ring, Focusing Range 27mm, Coarse Stroke17.6mm, Fine Stroke 0.1m, Fine Scale 1μm --Built-in Transmit Kohler Illumination, Light Intensity Management (LIM) System, Brightness Memory Function, ECO Auto-Off Function, One Key Switch Reflect / Transmit Light --USB Port Connect Computer, Support Software Auto Switch Measureing Scale & Camera Parameter For Each Objectives --Main Body Supply Power Supply For Both Transmit & Reflect Light |
● | ● | ● | A54.2201-S53F |
S53F2 Full Motorized Main Body --USB Port Connect Computer, Computer Can Fully Control Microscope Motorized "XYZRLCC": X/Y/Z Stage Moving, Nosepiece, Light, Condenser, Capture Photo & Video |
○ | ○ | ○ | A54.2201-S53F2 | |
A12.2253 Arm For Installing Nosepiece, Fixed To Main Body By 4 Screws | ● | ● | ● | A54.2201-SA | |
Head & Video Adapter |
Trinocular Head, Light Split (0/100, 50/50), FN=23mm | ● | ● | ● | A53.2201-ST01 |
Trinocular Head, Light Split (0/100, 50/50, 100/0), Ultra Wide FN=26.5 | ○ | ○ | ○ | A53.2201-ST02 | |
1.0x C-Mount + Focus Adapter Ring, For Sensor 2/3”~4/3”, Used With ST01, ST02 | ○ | ○ | ● | A55.2201-1xC | |
0.63x C-Mount, For Sensor 1/1.8”~ 2/3”, Used With ST01, ST02 | ○ | ○ | ○ | A55.2201-63xC | |
0.5x C-Mount, For Sensor 1/2”~ 1/1.8”, Used With ST01, ST02 | ○ | ○ | ○ | A55.2201-05xC | |
Erect Image Trinocular Head, Light Split (0/100, 50/50), Ultra Wide FN=26.5 | ○ | ○ | ○ | A53.2201-ST03 | |
0.63x C-Mount, For Sensor 1/1.8”~ 2/3”, Used With ST03 | ○ | ○ | ○ | A55.2201-63xB | |
Erect Image Trinocular Head, Light Split (50/50), Ultra Wide FN=26.5, Tiltable 0-45° | ○ | ○ | ○ | A53.2201-ST04 | |
1.0x C-Mount, For Sensor 2/3”~4/3”, Used With ST04 | ○ | ○ | ○ | A55.2201-1xA | |
0.63x C-Mount, For Sensor 1/1.8”~ 2/3”, Used With ST04 | ○ | ○ | ○ | A55.2201-63xA | |
Eyepiece | Ultra Wide Field 10x/23mm, Diopter Adjustable -2~+8°, With Eyecup | ● | ● | ● | A51.2201-1023 |
Ultra Wide Field 10x/25mm, Diopter Adjustable -2~+8°, With Eyecup | ○ | ○ | ○ | A51.2201-1025 | |
Ultra Wide Field 10x/26.5mm, Diopter Adjustable -2~+8°, With Eyecup | ○ | ○ | ○ | A51.2201-1026.5 | |
Nosepiece | 6 Holes Coded Manual Nosepiece, M20.32 Screw (RMS) | ● | ● | / | A54.2202-S6 |
6 Holes Motorized Nosepiece, M20.32 Screw (RMS) | ○ | ○ | / | A54.2203-6 | |
5 Holes Manual Nosepiece, M26 Screw, For BF/DF, Center Adjustable | / | / | ● | A54.2202-UP5BD | |
5 Holes Motorized Nosepiece, M26 Screw, For BF/DF | / | / | ○ | A54.2203-5BD | |
5 Holes Motorized Nosepiece, M26 Screw, Center Adjustable | / | / | ○ | A54.2203-5CA | |
Objective | PLCN Infinity Plan Achromatic Objective, Cover Glass- 0.17 | A51.2202 | |||
4X, N.A=0.10, W.D=17mm, OFN=23 | ○ | ○ | / | A51.2202-4 | |
10X, N.A=0.25, W.D=10mm, OFN=23 | ○ | ○ | / | A51.2202-10 | |
20X, N.A=0.40, W.D=3mm, OFN=23 | ○ | ○ | / | A51.2202-20 | |
40X, N.A=0.65, W.D=0.6mm, OFN=23 | ○ | ○ | / | A51.2202-40 | |
60X, N.A=0.80, W.D=3mm, OFN=23 | ○ | ○ | / | A51.2202-60 | |
100X, N.A=1.25, W.D=0.25mm, OFN=23 | ○ | ○ | / | A51.2202-100 | |
UPLN Infinity Plan Achromatic Objective, Cover Glass- 0.17 | A51.2203 | ||||
4X, N.A=0.13, W.D=17mm, OFN=26.5 | ● | ○ | / | A51.2203-4 | |
10X, N.A=0.30, W.D=10mm, OFN=26.5 | ● | ○ | / | A51.2203-10 | |
20X, N.A=0.50, W.D=3mm, OFN=26.5 | ● | ○ | / | A51.2203-20 | |
40X, N.A=0.75, W.D=0.6mm, OFN=26.5 | ● | ○ | / | A51.2203-40 | |
100X, N.A=1.3, W.D=0.25mm, OFN=26.5 | ● | ○ | / | A51.2203-100 | |
Fluorescent Objective | UPLFLN Infinity Plan Semi-APO FL Objective, Cover Glass- 0.17 | A5F.2201 | |||
4X, N.A=0.15, W.D=12mm, OFN=26.5 | ○ | ● | / | A5F.2211-4 | |
10X, N.A=0.30, W.D=9mm, OFN=26.5 | ○ | ● | / | A5F.2211-10 | |
20X, N.A=0.65, W.D=2..3mm, OFN=26.5 | ○ | ● | / | A5F.2211-20 | |
40X, N.A=0.9, W.D=0.7mm, OFN=26.5 | ○ | ● | / | A5F.2211-40 | |
100X, N.A=1.3, W.D=0.3mm, OFN=26.5 | ○ | ● | / | A5F.2211-100 | |
Metallurgical BF Objective |
MPLFLN Infinity Plan Semi-Apo EPI BF Objective | A5M.2211 | |||
5X, N.A=0.16, W.D=16mm, OFN=26.5 | / | / | ○ | A5M.2211-5 | |
10X, N.A=0.30, W.D=9mm, OFN=26.5 | / | / | ○ | A5M.2211-10 | |
20X, N.A=0.45, W.D=3mm, OFN=26.5 | / | / | ○ | A5M.2211-20 | |
50X, N.A=0.80, W.D=3mm, OFN=26.5 | / | / | ○ | A5M.2211-50 | |
100X, N.A=0.90, W.D=1.1mm, OFN=26.5 | / | / | ○ | A5M.2211-100 | |
20X-L, N.A=0.40, W.D=12mm, OFN=26.5 | / | / | ○ | A5M.2211-20L | |
50X-L, N.A=0.60, W.D=9.5mm, OFN=26.5 | / | / | ○ | A5M.2211-50L | |
100X-L, N.A=0.80, W.D=3mm, OFN=26.5 | / | / | ○ | A5M.2211-100L | |
NEOPLAN Infinity Semi-APO FL EPI BF Objective, High Resoluiton For Industry Fluorescent Observation |
A5M.2212 | ||||
2.5X, N.A=0.08, W.D=10mm, OFN=26.5 | / | / | ○ | A5M.2212-2.5 | |
5X, N.A=0.16, W.D=15mm, OFN=26.5 | / | / | ○ | A5M.2212-5 | |
10X, N.A=0.30, W.D=15mm, OFN=26.5 | / | / | ○ | A5M.2212-10 | |
20X, N.A=0.55, W.D=5mm, OFN=26.5 | / | / | ○ | A5M.2212-20 | |
20X-L, N.A=0.50, W.D=9mm, OFN=26.5 | / | / | ○ | A5M.2212-20L | |
20X-L, N.A=0.45, W.D=12mm, OFN=26.5 | / | / | ○ | A5M.2212-20SL | |
50X, N.A=0.85, W.D=1mm, OFN=26.5 | / | / | ○ | A5M.2212-50 | |
50X-L, N.A=0.80, W.D=2mm, OFN=26.5 | / | / | ○ | A5M.2212-50L | |
50X-L, N.A=0.55, W.D=8.7mm, OFN=26.5 | / | / | ○ | A5M.2212-50SL | |
100X-L, N.A=0.80, W.D=3.1mm, OFN=26.5 | / | / | ○ | A5M.2212-100 | |
Metallurgical BF/DF Objective |
MPLFLN Infinity Plan Semi-APO EPI BD Objective | A5M.2215 | |||
5X, N.A=0.16, W.D=16mm, OFN=26.5 | / | / | ● | A5M.2215-5 | |
10X, N.A=0.30, W.D=9mm, OFN=26.5 | / | / | ● | A5M.2215-10 | |
20X, N.A=0.45, W.D=3mm, OFN=26.5 | / | / | ○ | A5M.2215-20 | |
50X, N.A=0.80, W.D=3mm, OFN=26.5 | / | / | ○ | A5M.2215-50 | |
100X, N.A=0.90, W.D=1.1mm, OFN=26.5 | / | / | ○ | A5M.2215-100 | |
20X-L, N.A=0.40, W.D=12mm, OFN=26.5 | / | / | ● | A5M.2215-20L | |
50X-L, N.A=0.60, W.D=5mm, OFN=26.5 | / | / | ● | A5M.2215-50L | |
100X-L, N.A=0.80, W.D=3mm, OFN=26.5 | / | / | ● | A5M.2215-100L | |
MXAPO Infinity Plan Semi-APO FL EPI BD Objective High Resoluiton For Industry Fluorescent Semi-Conductor Observation |
A5M.2216 | ||||
5X, N.A=0.15, W.D=15mm, OFN=26.5 | / | / | ○ | A5M.2216-5 | |
10X, N.A=0.30, W.D=14mm, OFN=26.5 | / | / | ○ | A5M.2216-10 | |
20X, N.A=0.55, W.D=4mm, OFN=26.5 | / | / | ○ | A5M.2216-20 | |
50X, N.A=0.80, W.D=4mm, OFN=26.5 | / | / | ○ | A5M.2216-50 | |
100X, N.A=0.90, W.D=1mm, OFN=26.5 | / | / | ○ | A5M.2216-100 | |
20X-L, N.A=0.50, W.D=9mm, OFN=26.5 | / | / | ○ | A5M.2216-20L | |
50X-L, N.A=0.85, W.D=1mm, OFN=26.5 | / | / | ○ | A5M.2216-50L | |
20X-L, N.A=0.85, W.D=3mm, OFN=26.5 | / | / | ○ | A5M.2216-100L | |
LWD Objective | MPLSAPO Infinity Plan APO FL LWD Objective, Confocal 95mm For Large Sample, High Temperature Heating Sample Observation |
A5M.2231 | |||
2X, N.A=0.06, W.D=35mm, OFN=26.5 | ○ | ○ | ○ | A5M.2231-2 | |
5X, N.A=0.15, W.D=45mm, OFN=26.5 | ○ | ○ | ○ | A5M.2231-5 | |
10X, N.A=0.30, W.D=35mm, OFN=26.5 | ○ | ○ | ○ | A5M.2231-10 | |
20X, N.A=0.45, W.D=21mm, OFN=26.5 | ○ | ○ | ○ | A5M.2231-20 | |
50X, N.A=0.75, W.D=12mm, OFN=26.5 | ○ | ○ | ○ | A5M.2231-50 | |
100X, N.A=0.80, W.D=6mm, OFN=26.5 | ○ | ○ | ○ | A5M.2231-100 | |
20X-L, N.A=0.3, W.D=31mm, OFN=26.5 | ○ | ○ | ○ | A5M.2231-20L | |
50X-L, N.A=0.55, W.D=22mm, OFN=26.5 | ○ | ○ | ○ | A5M.2231-50L | |
Adapter to Raise Height 40mm For A5M.2231 APO 95mm Objectives | ○ | ○ | ○ | A5M.2231-HA | |
Working Stage | Manual Working Stage 3"x2", 255x160mm, Moving 55x75mm, Ultra Hard Nano Wear-resistant Ceramic Coating, With Damping Adjust Ring (Same As Olympus) | ● | ● | ● | A54.2204-O32 |
Manual Working Stage 4"x4", Ultra Hard Nano Wear-resistant Ceramic Coating, With Damping Adjust Ring (Same As Olympus) | ○ | ○ | ○ | A54.2204-O44 | |
Double Slide Holder, For Left Hand Use | ● | ● | / | A54.2204-SH | |
Metal Sample Holder, 3"x2", With Metal Plate For Reflect Light | / | / | ● | A54.2204-M32 | |
Metal Sample Holder, 3"X3", With Glass Plate For Reflect & Transmit Light | / | / | ○ | A54.2204-M33 | |
Metal Sample Holder, 4"X4", With Glass Plate For Reflect & Transmit Light | / | / | ○ | A54.2204-M44 | |
Condenser | Abbe Condenser, N.A=1.1, 4x~100x | ● | ● | ● | A56.2201-11 |
Achromatic Aplanatic Condenser, N.A=1.4, 10x~100x | ○ | ○ | / | A56.2201-14 | |
Swing-out Condenser N.A=0.9, 1.25x~100x (1.25x~4x When Swing Out) | ○ | ○ | / | A56.2201-S | |
Transmit Illumination | SUPERMLED 10W LED Light House, Life Time 60000 Hours, Wide Color Gamut 4500K Color Temperature | ● | ● | ● | A56.2204-1 |
SUPERMLED 18W LED Light House, Life Time 60000 Hours, Wide Color Gamut 4500K Color Temperature | ○ | ○ | ○ | A56.2204-2 | |
Reflect Fluorescent Illumination | Epi Fluorescent Turret Illuminator, With 4 Position, With Polarizing Slot | / | ● | / | A5F.2201 |
Lumi Cite 9100 Solid LED Extra Large Power Illuminator, Preset 4 Wavelengths of Excitation, Wavelength 340~750nm, 80W, Support DAPI, FITC, TRITC, TxRed, Cy5 | / | ○ | / | A5F.2201-L91 | |
Solid LED Light Source Dimmer For Lumi Cite 9100 | / | ○ | / | A5F.2201-LC91 | |
Lumi Cite 9300 Solid LED Extra Large Power Illuminator, Preset 4 Wavelengths of Excitation, Wavelength 330~750nm, 130W, Support DAPI, FITC, TRITC, TxRed, Cy5 | / | ● | / | A5F.2201-L93 | |
Solid LED Light Source Dimmer For Lumi Cite 9300 | ● | A5F.2201-LC93 | |||
USB 2.0 Cable Length 2m, Connect Illuminator to Controller or Computer | / | ● | / | A50.2202-3 | |
Chinese Standard Power Adapter 220V/12V/120W DC, For Solid LED Illuminator | / | ● | / | A50.2203-5 | |
Solid LED Light Source Optical Adapter | / | ● | / | A5F.2201-OLY | |
UV Long Pass Exciter: BP340-390, Emitter: BA420IF, Dichroic: DM410 | / | ● | / | A5F.2210-UVL | |
B Long Pass Exciter BP460-495, Emitter: BA510IF, Dichroic: DM505 | / | ● | / | A5F.2210-BL | |
G Long Pass Exciter: BP530-550, Emitter: BA575I, Dichroic: DM570 | / | ● | / | A5F.2210-GL | |
Reflect Metallurgical Illumination | Epi Metallurgical Reflect Illuminator, With BF & DF Module, With Polarizing Slot | / | / | ● | A5M.2201-SC |
5W LED Light House For Reflect Illuminator, Life Time 60000 Hours, 4500K Color Temperature | / | / | ● | A5M.2201-LH1 | |
Dark Field | Dark Field Condenser (Dry), N.A=0.92, 10x~100x | ○ | ○ | / | A5D.2201-D |
Dark Field Condenser (Oil), N.A=1.4, 10x~100x | ○ | ○ | / | A5D.2201-I | |
Phase Contrast | Universal Turret Phase Contrast Condenser, Support BF, DF, PH1, PH2, PH3 | ○ | ○ | / | A5C.2201 |
Green Filter For Phase Contrast Dia.45mm | ○ | ○ | / | A5C.2201-G45 | |
UPLFLN Infinity Plan Semi-APO FL Phase Contrast Objective | / | ||||
4x, N.A=0.15, CG=0.17, W.D=12mm, OFN=26.5 | ○ | ○ | / | A5C.2212-4 | |
10x, N.A=0.30, CG=0.17, W.D=9mm, OFN=26.5 | ○ | ○ | / | A5C.2212-10 | |
20x, N.A=0.65, CG=0.17, W.D=2.3mm, OFN=26.5 | ○ | ○ | / | A5C.2212-20 | |
40x, N.A=0.90, CG=0.17, W.D=0.7mm, OFN=26.5 | ○ | ○ | / | A5C.2212-40 | |
100x, N.A=1.30, CG=0.17, W.D=0.3mm, OFN=26.5 | ○ | ○ | / | A5C.2212-100 | |
Polarizing | Polarizing Round Working Stage 360° Rotatable With Scale, Center Adjustable, Work With Center Adjustable Nosepiece |
○ | ○ | ○ | A54.2204-R |
Transmit Polarizer Filter Dia.45mm, Put On Transmit Light Port | ○ | ○ | ○ | A5P.2201-P45 | |
Transmit Analyzer, Insert In Nosepiece Slot | ○ | ○ | ○ | A5P.2201-P30 | |
Transmit Analyzer Holder | ○ | ○ | ○ | A5P.2201-P45H | |
Reflect Polarizer Slide, Insert In Reflect Illuminator Slot. | / | ○ | ○ | A5P.2201-A | |
Reflect Analyzer Slide, Rotate 360°, Insert In Reflect Illuminator Slot. | / | ○ | ○ | A5P.2201-A3 | |
DIC | DIC Slider For Reflect Light | / | / | ○ | A5C.2210 |
Camera | 3.0M USB 2.0 Camera, Sony 1/2" Color CMOS, Work With 0.5x C-Mount | ○ | ○ | ○ | A59.2271-3M |
6.3M USB 3.0 Camera, Sony 1/1.8" Color CMOS, Work With 0.5x/0.63x C-Mount | ○ | ○ | ○ | A59.2271-6.3M | |
20M USB 3.0 Camera, Sony 1" Color CMOS, Work With 1x C-Mount | ○ | ○ | ○ | A59.2271-20M | |
8.0M USB 3.0 Fluorescent Camera, Sony 1" Color CMOS, Work With 1x C-Mount | / | ○ | / | A59.2272-8M | |
12.8M USB3.0 Fluorescent Camera, Sony 1" Color CMOS, Work With 1x C-Mount | / | ○ | / | A59.2272-12.8M | |
Motorized System | Motorized System, Work WithS53F Motorized Body, Need To Order Full Set: | ||||
Motorize X/Y Stage, Stepper Motor Eliminating Gaps Ball Screw, Moving 118x76mm | ○ | ○ | ○ | A54.2206-30 | |
4 Slides Holder For Motorized Stage | ○ | ○ | ○ | A54.2206-30SH4 | |
Motorized Z Axis With Coded System, Directly Install On S53F Body | ○ | ○ | ○ | A54.2207-3 | |
Quarc Controller, Support PC Control XYZ Motorized Stage + Motorized Nosepiece | ○ | ○ | ○ | A54.2208-M200 | |
Toton Joystick, Directly Control XYZ Motorized Stage + Motorized Nosepiece | ○ | ○ | ○ | A54.2208-MCP | |
Other | Immersion Oil 8ml, Reflect Ratio=1.518, Low Viscosity (135CST) | ● | ● | ● | A50.2201-1 |
Chinese Standard Power Adapter 220V/24V/36W DC | ● | ● | ● | A50.2203-2 | |
Dust Cover | ● | ● | ● | A50.2204-1 | |
Latex Gloves | ● | ● | ● | A50.2204-2 | |
Hexagonal Tool Kit 3#, 4# | ● | ● | ● | A50.2204-3 | |
Packing Carton | ● | ● | ● | A50.2204-5 |
