OPTO-EDU A18.1861 Palm Finger Scanner

OPTO-EDU A18.1861 Palm Finger Scanner

  • Highlight

    Palm Finger Scanner

    ,

    opto edu

  • Image Types
    Flats, Rolls, Slaps, Lower, Upper And Writer’s Palm
  • Image Resolution
    500 Dpi, 256 Levels Of Gray
  • Image Quality
    FBI’s IAFIS IQS Appendix-F Certified
  • Image Format
    BMP, WSQ, ISO/IEC 19794-4, ISO/IEC 19794-2
  • Acquisition Mode
    Auto Capture And Manual Mode
  • Visual Indicators
    Intuitive 3 LED Status Indicators
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A18.1861
  • Document
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO-EDU A18.1861 Palm Finger Scanner


OPTO-EDU

Palm & Finger Scanner, With Comparison Software, FBI's Appendix-F Certified

Palm & Finger Scanner, With Comparison Software, FBI's Appendix-F Certified

OPTO-EDU A18.1861 Palm Finger Scanner 3

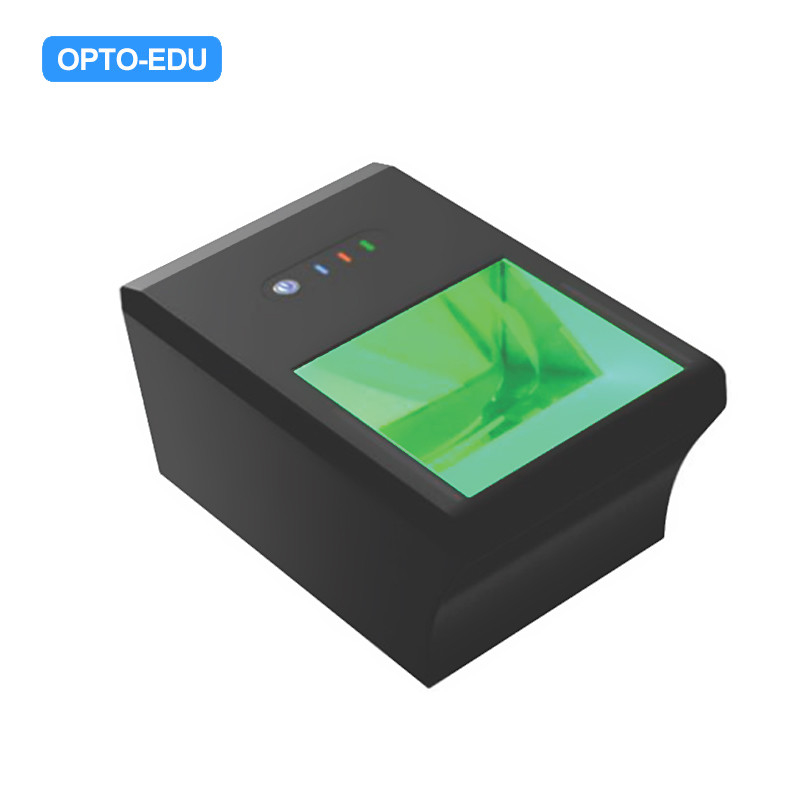

A18.1861 Palm + Finger Scanner



A18.1861 is the compact and lightest palm scanner fully certified with FBI’s IAFIS Appendix-F specification which enables the scanner to deliver reliable and superior image quality and make it the optimal capturing device for criminal enrollment or background check.   A18.1861 employs the most advanced optical technology and dedicated special lighting source plus the enhanced fingerprint identification algorithm that allow the high speed finger and palmprint capturing including rolled prints.   The integrated automatic capture functionality ensures rapid capturing of high quality image for biometric data collection and eliminates the possible reprint issues.



KEY FEATURES



• Sliding detection for flat prints capturing

• Latent prints and halo elimination from recent scans

• Automatic device calibration when scanner starts up

• Auto segmentation of slaps into discrete single image

• Automatic fingerprint image quality checking

• Correct finger position and slap completeness check

• Auto capture functionality to eliminate reprint issues

• Smart status indicators for intuitive instructions

• Optional prism heater upon customer requirements



USE CASES



• Law enforcement

• Cabinet and Kiosk integration

• Criminal and suspect enrollment

• Background check

• Inmates registration



A18.1861 Palm & Finger Scanner, With Comparison Software, FBI's Appendix-F Certified
Image Types Flats, rolls, slaps, lower, upper and writer’s palm
Image Size Palm prints up to 5.0” x 5.0”
Flat 4-fingers slaps prints up to 3.2” x 3.0”
Single rolled fingerprints up to 1.6” x 1.5”
Image Resolution 500 dpi, 256 levels of gray
Image Quality FBI’s IAFIS IQS Appendix-F certified
Image Format BMP, WSQ, ISO/IEC 19794-4, ISO/IEC 19794-2
Acquisition Mode Auto capture and manual mode
Visual Indicators Intuitive 3 LED status indicators
Buzzer On board programmable
Power Supply 100-220V AC, 50-60Hz
Interface USB 3.0
Weight 3.2 kg
Dimensions (L*W*H) 256mm x 164mm x 128mm
Operating Systems Windows, Linux OS
Software & SDKs Scan demo, APIs for system integration
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Humidity Range 10% to 90%, non-condensing
