Coarse and fine precise adjustment system(scale 1μm), Coarse stroke 30mm Focusing upper limiting device |
280x160mm Rackless integrated Large size Mechanical stage, travel range 80x52mm |
|
|
▶ Management System(Optional)
1. Only for LED illumination 2. LCD display 3. Power-on shows customer logo 4. Current magnification of objective display 5. Working brightness display, current brightness memory 6. Working time setting 7. LED bulb color temperature adjustable within 3500K-6000K 8. Brightness adjustment automatically upon different objectives |
|
▶ Brand new Koehler illumination system ensures excellent optical performance |
|
5W LED Illumination |
50W/100W Halogen Illumination |

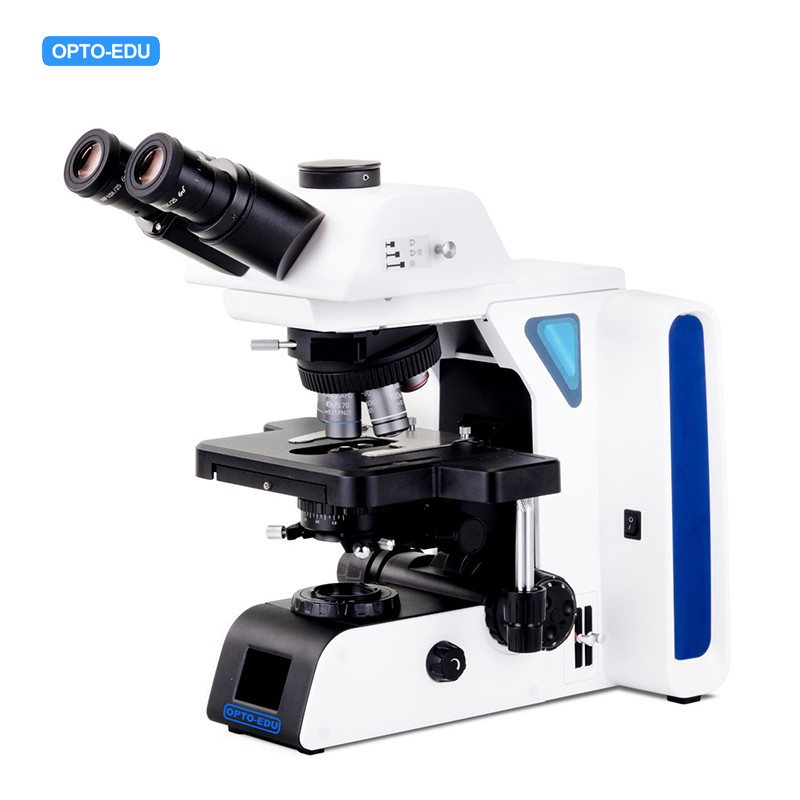

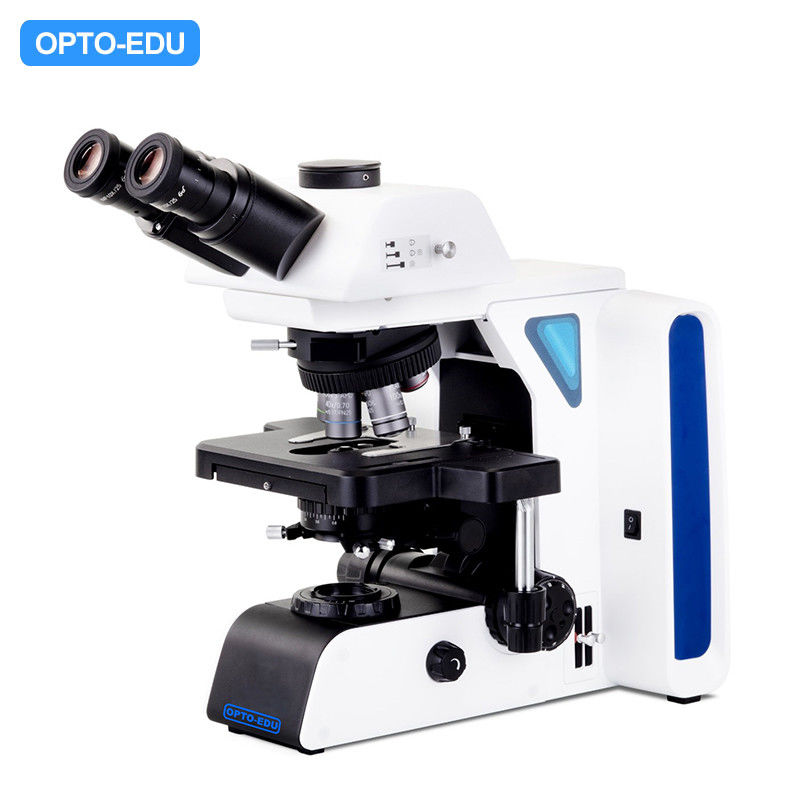

| Research Laboratory Biological Microscope | A12.2610 -Lite |
A12.2610 | Cata. No. | |
| Eyepiece | WF10x/25mm, High Eyepoint, Diopter Adjustable | ●● | ●● | A51.2621-1025 |
| WF10x/23mm, High Eyepoint, Diopter Adjustable | ○○ | ○○ | A51.2621-1023 | |
| Infinity Plan Objective (F.N.25) |
PLAN 4X /0.11, W.D.12.1mm | ● | A52.2610-4 | |
| PLAN 10X /0.25, W.D.10.0mm | ● | A52.2610-10 | ||
| PLAN 20X /0.45, W.D.3.33mm | ● | A52.2610-20 | ||
| PLAN 40X /0.70 (S), W.D.2.61mm | ● | A52.2610-40 | ||
| PLAN 100X /1.25 (S,Oil), W.D.0.25mm | ● | A52.2610-100 | ||
| PLAN 2X /0.06, W.D.7.2mm | ○ | A52.2606-2 | ||
| Infinity Plan Semi-APO Objective (F.N.25) |
PLAN S-APO 4X /0.10, W.D.16.2mm | ● | A52.2611-4 | |
| PLAN S-APO 10X /0.30, W.D.9.6mm | ● | A52.2611-10 | ||
| PLAN S-APO 20X /0.45, W.D.2.8mm | ● | A52.2611-20 | ||
| PLAN S-APO 40X /0.70 (S), W.D.0.55mm | ● | A52.261140 | ||
| PLAN S-APO 100X /1.25 (S,Oil), W.D.0.21mm | ● | A52.2611-100 | ||
| Head | Trinocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance 48-76mm, 3 Light Split Ratio: E100:P0, E80:P20, E0:P100 | ○ | ● | A53.2610-T18 |
| Trinocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance 48-76mm, 2 Light Split Ratio: E100:P0, E80:P20 | ● | ○ | A53.2610-T13 | |
| Nosepiece | 6 Holes Nosepiece, Inward | ● | ● | A54.2610-N6 |
| Working Stage | Double Layer Rackless Mechanical Stage, Size 280x160mm, Moving 80x52mm, Double Slide Holder | ● | ● | A54.2601-AT280 |
| Condenser | Swing-out Condenser N.A.0.9/0.13, With Scale, Can Be Locked, | ● | ● | A56.2614-C11 |
| Polarizing | Analyzer, Put In Slide Insert To Hole On Nosepiece Polarizer, Put On Stand Light Collector |
○ | ○ | A5P.2601-BK |
| Dark Field | Dry Dark Field Condenser, Apply For 4x - 40x Objective | ○ | ○ | A5D.2610+BK |
| Immersion Dark Field Condenser, Apply For 100x Objective | ○ | ○ | A5D.2610-BKW | |
| Phase Contrast | 5 Holes Phase Contrast Conenser, With Infinity Plan Phase Contrast Objective 10x,20x,40x,100x, Centering Telescope 10x | ○ | ○ | A5C.2603-BS |
| LED Fluorescence | LED Fluorescent Illuminator, 2 Filters B/G, With Barrier, 5W LED Bulb Move With Filter | ○ | ○ | A5F.2610-2 |
| LED Fluorescent Illuminator, 4 Filters B/G/Uv/U, With Barrier, 5W LED Bulb Move With Filterarrier | ○ | ○ | A5F.2610-4 | |
| Fluorescent Filters, FITC, DAPI, TRITC, Cy5, FishAqua, FishGreen, etc | ○ | ○ | A5F.2620 | |
| Fluorescent Filters, Chroma B, G, UV | ○ | ○ | A5F.2621 | |
| Koehler Illumination | 5W-LED Illumination | ● | ● | A56.2612-5WL |
| 12V/50W Halogen Lamp | ○ | ○ | A56.2613-12V50WL | |
| 12V/100W Halogen Lamp | ○ | ○ | A56.2613-12V100WL | |
| C-mount | 0.5x C-Mount, Focus Adjustable | ● | ● | A55.2601-05 |
| 0.35x C-Mount, Focus Adjustable | ○ | ○ | A55.2601-35 | |
| 0.75x C-Mount, Focus Adjustable | ○ | ○ | A55.2601-75 | |
| 1.0x C-Mount, Focus Adjustable | ○ | ○ | A55.2601-10 | |
| Filter | Forested Glass Filter | ● | ● | A56.2616-RSN |
| Blue/ Green/ Yellow | ○ | ○ | A56.2616-RSB | |
| Green Filter | ○ | ○ | A56.2616-RSG | |
| Yellow Filter | ○ | ○ | A56.2616-RSY | |
| LCD Screen ECO (Optional Only For LED Stand) |
LCD Screen Optional For A12.2610 LED Stand, Function: 1,Show Customer Logo； 2,Show Objective Magnification； 3,Show & Remember Brightness For Each Objective； 4,Set ECO Timer； 5,Adjust Light Color Temperature 3500K--6000K. |
○ | ○ | A56.2661 |
|
▶ A53.2610-T13 (For A12.2610-Lite) Trinocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance 48-76mm, 2 Light Split Ratio: E100:P0, E80:P20 |
▶ A53.2610-T18 (For A12.2610) Trinocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance 48-76mm, 3 Light Split Ratio: E100:P0, E80:P20, E0:P100 |
|
▶ A52.2611 Infinity Plan Semi-APO Objective (F.N.25) |
