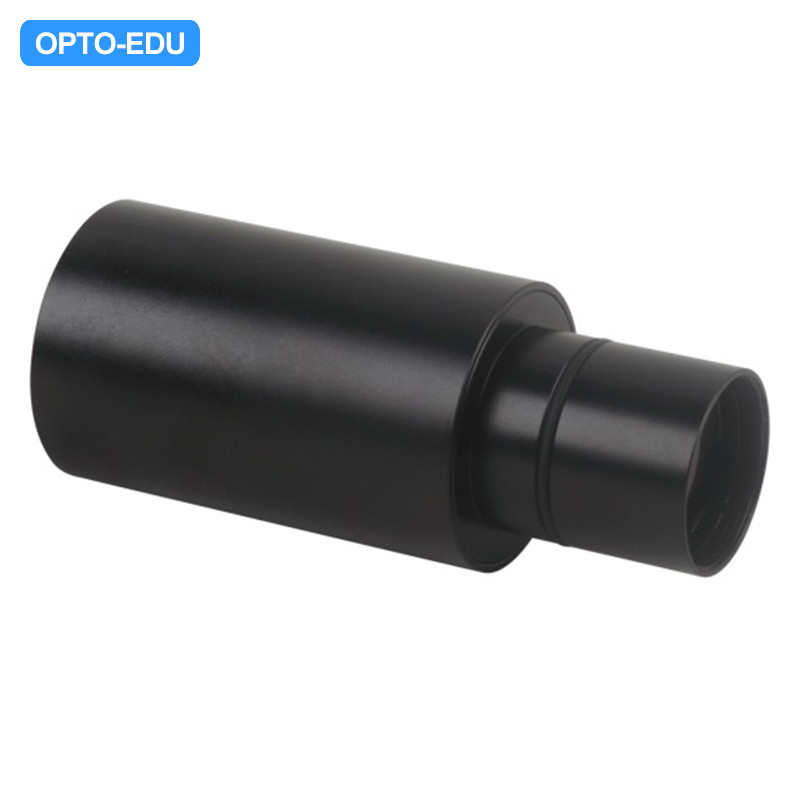

A59.2205-B USB2.0 CMOS Digital Eyepiece Camera, Reduction Lens ToupTek A59.2205-B is an extension of ToupTek’s A59.2205-B Camera with fixed reduction lens to increase the field of view from the microscope eyepiece tube. The A59.2205-B is still an economic version with simple and compact structure CMOS eyepiece camera. So here, the S means simple and compact, P means plus. USB2.0 is used as the data transfer interface.
The A59.2205-B eyepiece Camera comes with high-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;
Also the A59.2205-B comes with advanced video & image processing application ToupView;
The A59.2205-B can be widely used to transfer the mono or binocular student microscopes to digital microscope.
With 23.2 to 30mm or 23.2 to 30.75 convert ring, the A59.2205-B Camera can also change the stereo microscope to digital stereo microscope. |
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Responsivity Dynamic range SNRmax | FPS/Resolution | Binning | Exposure |
| 05100KPB | 5.1M/IMX335© 1/2.8“ (5.18x3.89) |
2.0x2.0 | 505mV 70dB 43dB |
26@2592x1944 26@1280x960 26@640x480 |
1x1 1x1 1x1 |
0.1-2000 ms |
| Other Specification | |
| Spectral Range | 380-650nm (with IR-cut Filter) |
| White Balance | Auto White Balance |
| Color Technique | N/A |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System | Still Picture and Movie |
| Data Format | MJPEG |
| Cooling System* | Natural |
| Operating Environment | |
| Operating Temperature(in Centidegree) | -10~ 50 |
| Storage Temperature(in Centidegree) | -20~ 60 |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port |
| Software Environment | |
| Operating System | Microsoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit) OSx(Mac OS X) Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher Memory:2GB or More USB Port:USB2.0 High-speed Port Display:17” or Larger CD-ROM |

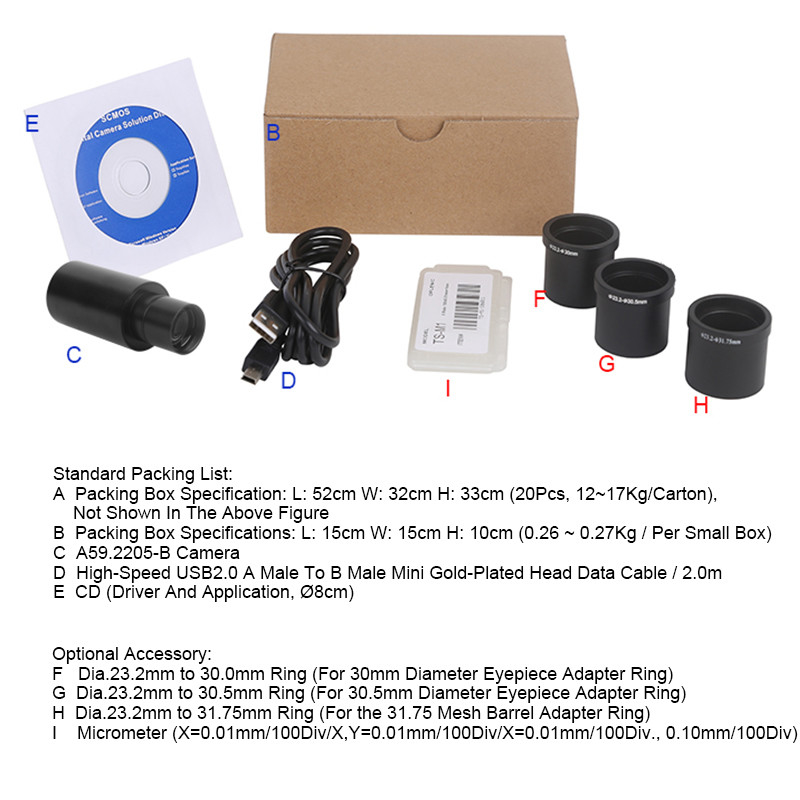

| Standard Camera Packing List | ||
| A | Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo | |
| B | Gift box L:15cm W:15cm H:10cm (0.25~0.26Kg/ box) | |
| C | One SPCMOS series eyepiece camera | |
| D | High-Speed USB2.0 A male to mini B 5-pin male gold-plated connectors cable /1.5m | |
| E | CD (Driver & utilities software, Ø8cm) | |
| Optional Accessory | ||
| F | 108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube | |
| G | 108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube | |
| H | 108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube | |
| I | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
