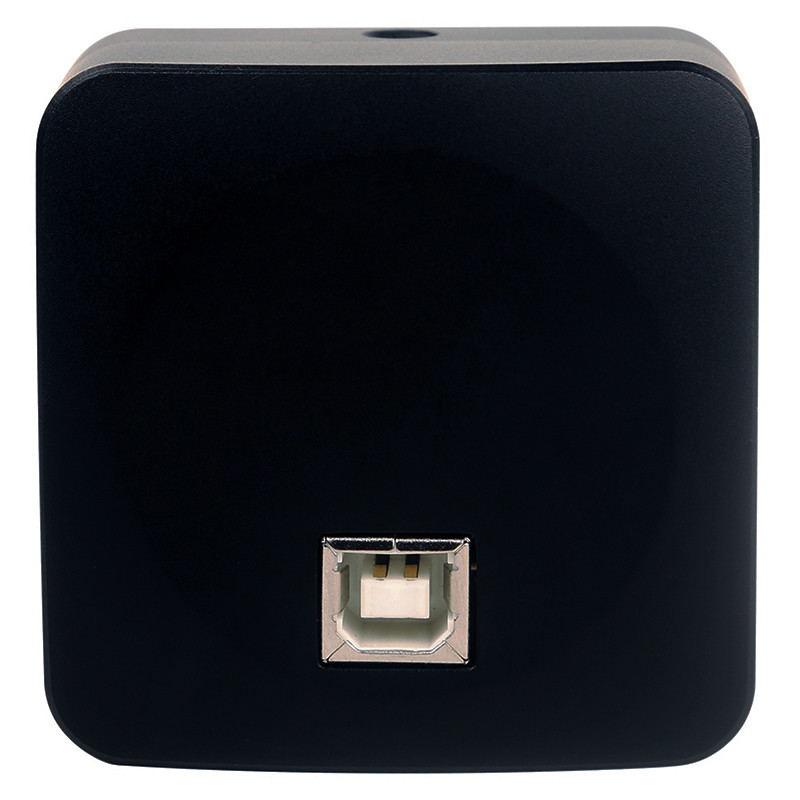

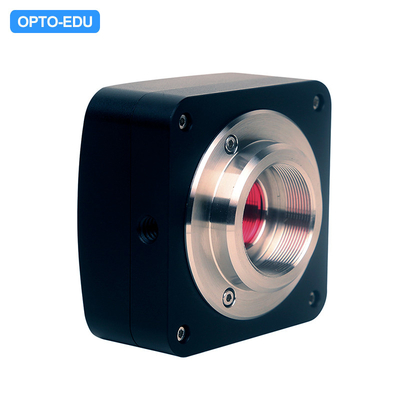

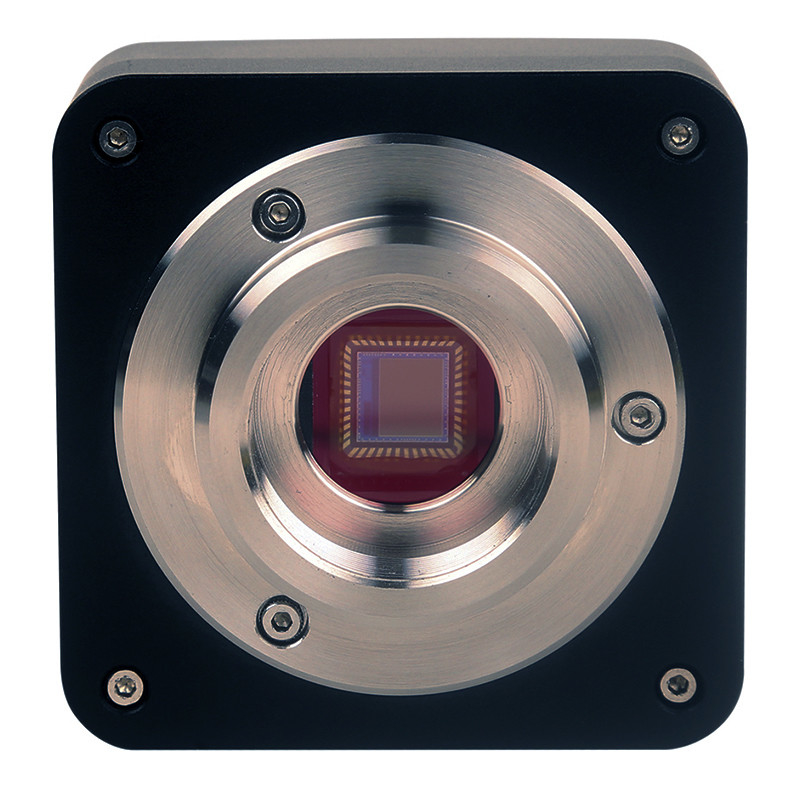

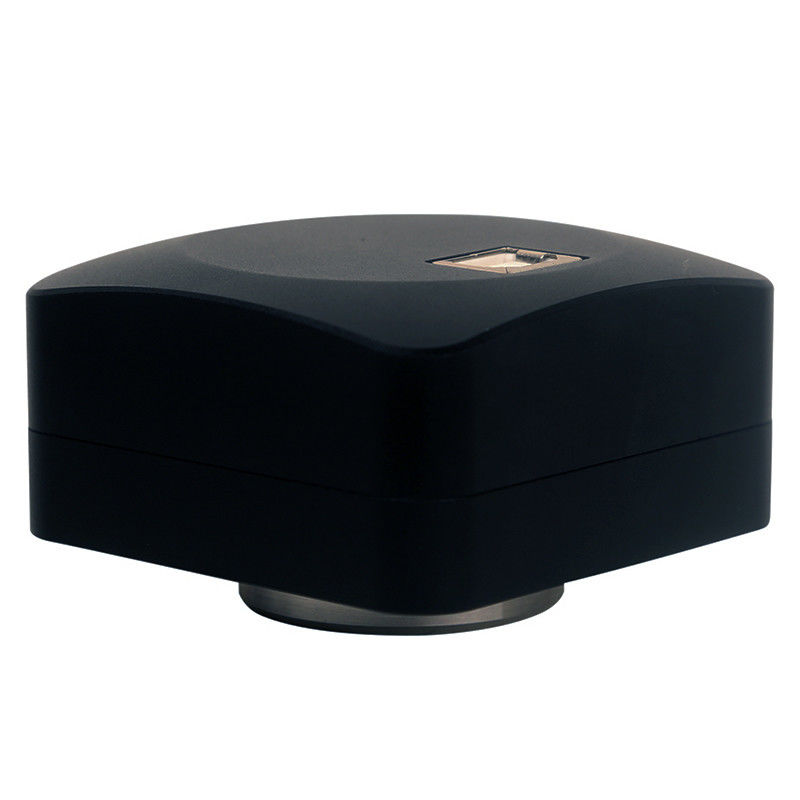

A59.2208-E USB2.0 CMOS Digital Camera A59.2208-E adopt SONY Exmor CMOS sensor as the image-picking device and USB2.0 is used as the data transfer interface. A59.2208-E hardware resolutions range from 1.2M to 8.3M and come with the integrated CNC aluminum alloy compact housing. A59.2208-E comes with advanced video & image processing application ToupView; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc); The A59.2208-E can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate. |
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
| 8.3MPA | 8.3M/IMX274© 1/2.5”(6.22x3.50) |
1.62x1.62 | 236mv with 1/30s 0.1mv with 1/30s |
4@3840x2160 16@1920x1080 |
1x1 2x2 |
0.244ms~15s |
| 6.6MPA | 6.6M/IMX326© 1/2.9”(4.98x3.50) |
1.62x1.62 | 236mv with 1/30s 0.1mv with 1/30s |
5@3072x2160 6@2592x1944 6@3072x1728 7@2160x2160 |
1x1 1x1 1x1 1x1 |
0.244ms~15s |
| 5.3MPA | 5.3M/IMX178© 1/1.9“ (7.37x4.15) |
2.4x2.4 | 425mv with 1/30s 0.15mv with 1/30s |
5.5@3072 x1728 35@1280x720 |
1x1 2x2 |
0.105ms~15s |
| 5.0MPA | 5.0M/IMX335© 1/2.8“ (5.18x3.89) |
2.0x2.0 | 505mv with 1/30s 0.13mv with 1/30s |
6.4@2592 x1944 26.7@1296x972 |
1x1 2x2 |
0.1ms~15s |
| 3.1MPA | 3.1M/IMX123© 1/2.8“ (5.12x3.84) |
2.5x2.5 | 600mv with 1/30s 0.15mv with 1/30s |
11.5@2048x1536 18.3@1920x1080 18.1@1600x1200 29.5@1024x768 |
1x1 1x1 1x1 2x2 |
0.105ms~15s |
| 2.0MPA | 2.0M/IMX290© 1/2.8“(5.56x3.13) |
2.9 x2.9 | 1300mv with 1/30s 0.15mv with 1/30s |
17@1920x1080 | 1x1 | 0.105ms~15s |
| 1.2MPA | 1.2M/IMX224© 1/3“(4.80x3.60) |
3.75 x3.75 | 2040mv with 1/30s 0.15mv with 1/30s |
27@1280x960 54@640x480 |
1x1 2x2 |
0.105ms~15s |
| Other Specification | |
| Spectral Range | 380-650nm (with IR-cut Filter) |
| White Balance | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
| Color Technique | Ultra-Fine Color Engine/NA for Monochromatic Sensor |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| ADC | 8 Bit |
| Recording System | Still Picture and Movie |
| Cooling System* | Natural |
| Operating Environment | |
| Operating Temperature(in Centidegree) | -10~ 50 |
| Storage Temperature(in Centidegree) | -20~ 60 |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port |
| Software Environment | |
| Operating System | Microsoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit) OSx(Mac OS X) Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher Memory: 2GB or More USB Port: USB2.0 Port Display: 17” or Larger CD-ROM |
| Standard Camera Packing List | |||
| A | Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo | ||
| B | Gift box L:15cm W:15cm H:10cm (0.5~0.55Kg/ box) | ||
| C | One ECMOS series camera | ||
| D | High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m | ||
| E | CD (Driver & utilities software, Ø12cm) | ||
| Optional Accessory | |||
| F | Adjustable lens adapter | C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) |
108001/AMA037 108002/AMA050 108003/AMA075 |
| C-mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope) |
108008/ATA037 108009/ATA050 108010/ATA075 |
||
| G | Fixed lens adapter | C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) |
108005/FMA037 108006/FMA050 108007/FMA075 |
| C-Mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope) |
108011/FTA037 108012/FTA050 108013/FTA075 |
||
| Note: For F and G optional items, please specify your Camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
| H | 108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube | ||
| I | 108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube | ||
| J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube | ||
| K | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.);106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
|
