| A59.2239 Auto Focus 4K HDMI+WIFI+USB Camera, Mouse Measure A59.2239 is a camera designed that includes multiple modes of output (HDMI/WLAN/USB), It uses ultra-high-performance CMOS sensor. The camera can be directly connected to an HDMI display, or it can be connected to a computer via WiFi or USB, and the image and video can be saved in an SD card /USB flash drive for on-site analysis and subsequent research. Enhanced with an embedded ARM core, this camera integrates various functions inside. With the help of a USB mouse and well-designed UI on the HDMI monitor, all functions could be easily controlled. A59.2239 camera comes with the built-in Auto Focus system, which can realize Auto Focus on specific areas of the sample. By inserting a WLAN module or connecting to a computer via a USB cable, the user can directly control the camera's hardware with the software Image View. A59.2239 camera can be used for tool field inspection, microscope observation, etc. A59.2239 cameraa is intended to be used for the acquisition of digital images from the stereo microscope, biological microscope or online interactive teaching. |
| A59.2239 Auto Focus 4K HDMI+WIFI+USB+SD Camera, Mouse Measure | ||||||
| Cata. No. | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
| 8MPA | 4K/Sony IMX334©1/1.8"(7.68x4.32) | 2.0x2.0 | 505 mv with 1/30s 0.13 mv with 1/30s |
30@3840x2160(HDMI) 30@3840x21600(WLAN) 30@3840x2160(USB) |
1x1 | 0.04ms~1000ms |
| Remark: C - Color, M-Monocolor, GS-GS Shutter | ||||||

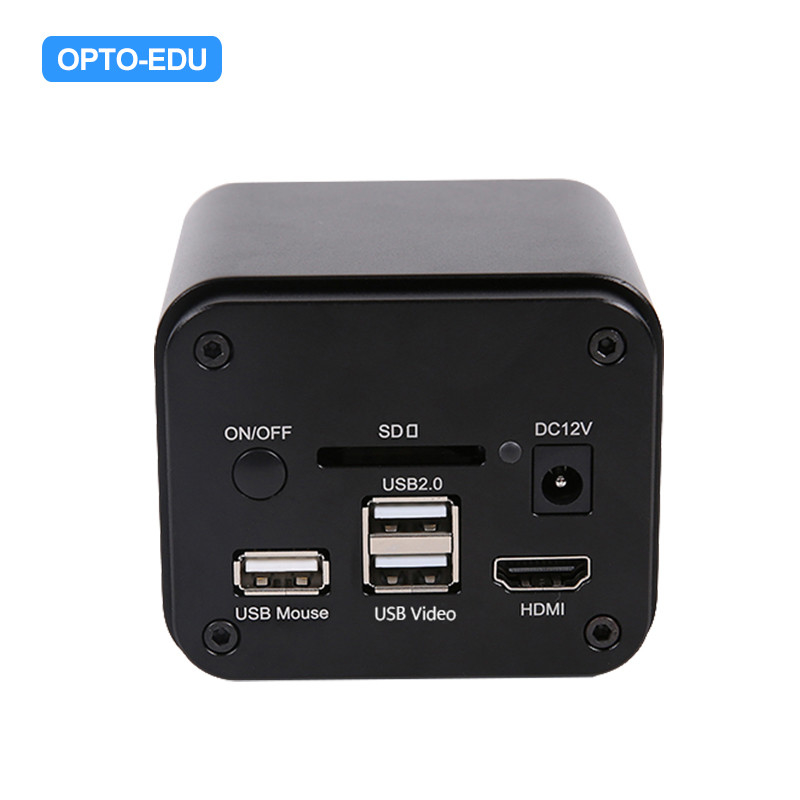

| INTERFACE & BUTTON FUNCTION | ||||||
| USB Mouse | Connect USB mouse for easy operation with embedded Image View software | |||||
| USB2.0 | Connect USB flash drive to save pictures and videos | |||||
| Connect 5G WLAN module to transfer video wirelessly in real time | ||||||
| USB Video | Connect PC or other host device to realize video image transmission | |||||
| HDMI | Comply with HDMI1.4 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors | |||||
| ON/OFF | Power switch | |||||
| SD | Comply with SDIO3.0 standard and SD card could be inserted for video and images saving | |||||
| LED | LED status indicator | |||||
| DC12V | Power adapter connection (12V/1A) | |||||
| VIDEO OUTPUT INTERFACE FUNCTION DESCRIPTION | ||||||
| HDMI | Comply with HDMI1.4 standard 30fps@4K or 30fps@1080P |
|||||
| WIFI | Connecting 5G WLAN adapter (USB2.0 slot) in AP/STA mode (WIFI Adapter Is Optional) | |||||
| USB | Connecting USB Video port of PC for video transfer | |||||
| MJPEG format video | ||||||
| FUNCTION DESCRIPTION | ||||||
| Video Saving | Video format:8M(3840*2160) H264/H265 encoded MP4 file | |||||
| Video saving frame rate:30fps in SD card or USB flash drive | ||||||
| Image Capture | 8M (3840*2160) JPEG/TIFF image in SD card or USB flash drive | |||||
| Measurement Saving | Measurement information saved in different layer with image content | |||||
| Measurement information is saved together with image content in burn in mode | ||||||
| ISP | Exposure(Automatic, Manual Exposure), Gain, White Balance(Manual, Automatic, ROI Mode),Sharpening,3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function | |||||
| Video/Image Operation | Zoom In/Zoom Out(Up to 10X), Mirror/Flip, Color/Gray, Freeze, Cross Line, Overlay , Auto Focus, Compare(Comparison between real time video and images in SD card/ USB flash drive ), Embedded Files Browser, Video Playback, Measurement Function | |||||
| Embedded RTC | To support accurate time on board (Optional) | |||||
| Restore | Restore camera parameters to its factory status | |||||
| Multiple Language | English, Simplified Chinese, Traditional Chinese, Korean, Thailand, French, German, Japanese, Italian, Russian | |||||
| Recording System | Still Picture or Movie (WiFi) | |||||
| SOFTWARE ENVIRONMENT FOR LAN/WLAN/USB VIDEO OUTPUT | ||||||
| White Balance | Auto White Balance | |||||
| Color Technique | Ultra-Fine Color Engine | |||||
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) | |||||
| Recording System | Still Picture or Movie | |||||
| Operating System | Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit) | |||||
| OS X (Mac OS X), | ||||||
| Linux | ||||||
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher | |||||
| Memory: 2GB or More | ||||||
| USB port: USB2.0 High-speed Port | ||||||
| Display: 17" or Larger | ||||||
| CD-ROM | ||||||
| OPERATING ENVIRONMENT | ||||||
| Operating Temperature | -10 °C~ 50 °C | |||||
| Storage Temperature | -20 °C~ 60 °C | |||||
| Operating Humidity | 30~80%RH | |||||
| Storage Humidity | 10~60%RH | |||||
| Power Supply | DC 12V/2A Adaptor | |||||
| Dimension of A59.2239 Series Camera | ||||||

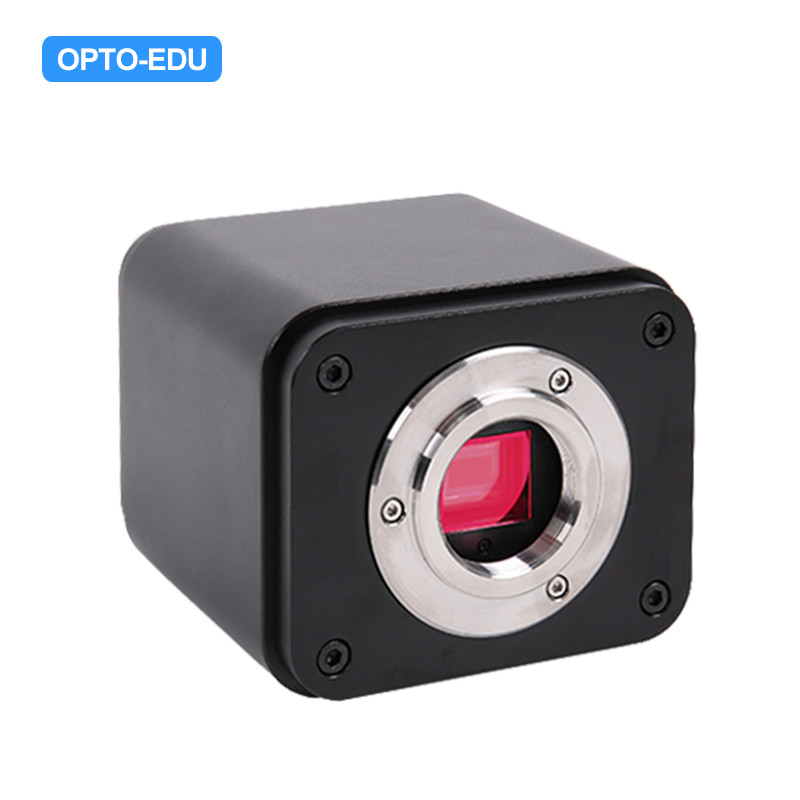

| A59.2239 Auto-focus HDMI WiFi CMOS camera body, made from tough, CNC aluminium alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions. | ||||||
| How To Choose C-Mount According to Digital Camera Sensor Size | |||
| To choose camera adapter (C-Mount) or eyepiece adapter correctly, please refer to the quick table "Digital Camera Sensor Size & C-Mount". Choose the adapter's (C-Mount) magnification according to your camera's sensor size, you can get the best view field under camera watching. Or you can specify the cameras choosed, and its usage (for Microscope or for Telescope), Opto-Edu sales manager will assist you to choose adapters correctly. |
Digital Camera Sensor Size & C-Mout | ||
| Sensor | Diagonal Sise | C Mount Compitable | |
| 1'' | 16mm | 1.0x | |
| 2/3'' | 10.6mm | 0.75x/0.63x | |
| 1/1.8'' | 8.8mm | 0.5x/0.55x | |
| 1/2'' | 8mm | 0.5x | |
| 1/2.5'' | 6.4mm | 0.5x | |
| 1/2.8'' | 5.7mm | 0.5x | |
| 1/3'' | 5.3mm | 0.3x | |
| 1/4'' | 4mm | 0.3x | |
| Remark: 1''=16mm For Digital Camera's Diagonal Size | |||
| Packing List of A59.2240 Series Camera | ||||||
| Standard Outfit | ||||||
| A | Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.48Kg/ box) | |||||
| B | Digital camera | |||||
| C | Power Adaptor: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A | |||||
| American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC | ||||||
| EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 | ||||||
| EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard | ||||||
| European standard: Model:GS12E12-P1I 12W/12V/1A； TUV(GS)/CB/CE/ROHS | ||||||
| EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 | ||||||
| EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard | ||||||
| D | USB Mouse | |||||
| E | HDMI Cable | |||||
| F | USB2.0 A male to A male gold-plated connectors cable /2.0m | |||||
| G | CD (Driver & utilities software, Ø12cm) | |||||
| Optional Accessory | ||||||
| H | SD Card(16G or above; Speed: class 10) | |||||
| I | Focus Adjustable Eyepiece Adapter | For Microscope | 0.37x, C-Mount to Dia.23.2mm | A55.2202-A37 | ||
| 0.50x, C-Mount to Dia.23.2mm | A55.2202-A50 | |||||
| 0.75x, C-Mount to Dia.23.2mm | A55.2202-A75 | |||||
| For Telescope | 0.37x, C-Mount to Dia.31.75mm | A55.2204-A37 | ||||
| 0.50x, C-Mount to Dia.31.75mm | A55.2204-A50 | |||||
| 0.75x, C-Mount to Dia.31.75mm | A55.2204-A75 | |||||
| J | Focus Fixed Eyepiece Adapter |
For Microscope | 0.37x, C-Mount to Dia.23.2mm | A55.2202-F37 | ||
| 0.50x, C-Mount to Dia.23.2mm | A55.2202-F50 | |||||
| 0.75x, C-Mount to Dia.23.2mm | A55.2202-F75 | |||||
| For Telescope | 0.37x, C-Mount to Dia.31.75mm | A55.2204-F37 | ||||
| 0.50x, C-Mount to Dia.31.75mm | A55.2204-F50 | |||||
| 0.75x, C-Mount to Dia.31.75mm | A55.2204-F75 | |||||
| K | Adaptor Rings Dia.23.2mm to 30.0mm For 30.0mm Microscope Eyepiece Tube | A55.2203-30 | ||||
| L | Adaptor Rings Dia.23.2mm to 30.5mm For 30.5mm Microscope Eyepiece Tube | A55.2203-30.5 | ||||
| M | Calibration Stage Micrometer |
X=0.01mm/100Div. | ||||
| X,Y=0.01mm/100Div | ||||||
| X=0.01mm/100Div., 0.10mm/100Div | ||||||
| N | USB DISK | |||||
| O | USB WIFI Adapter | |||||
