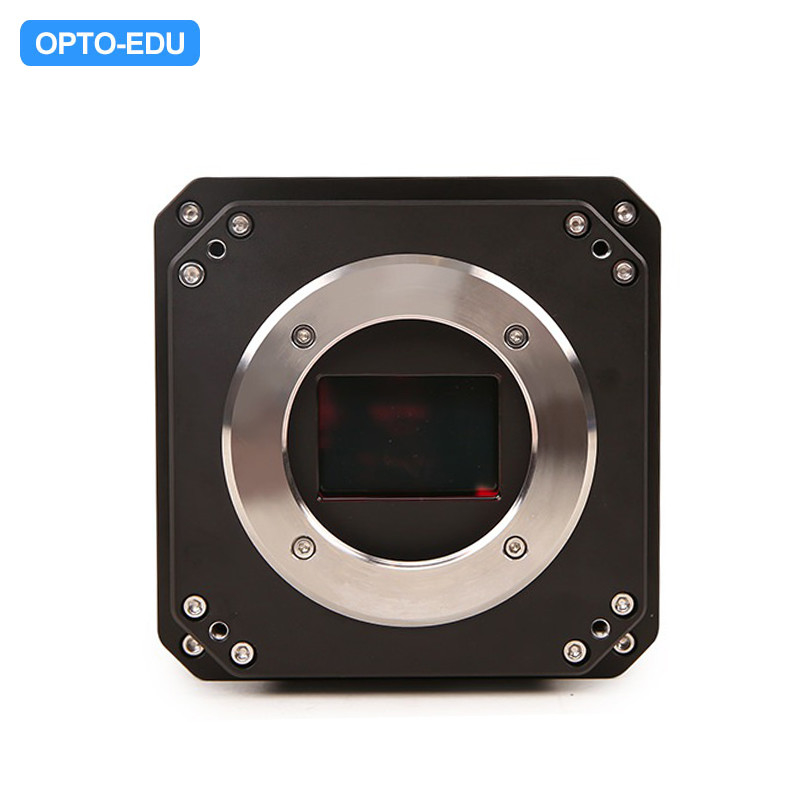

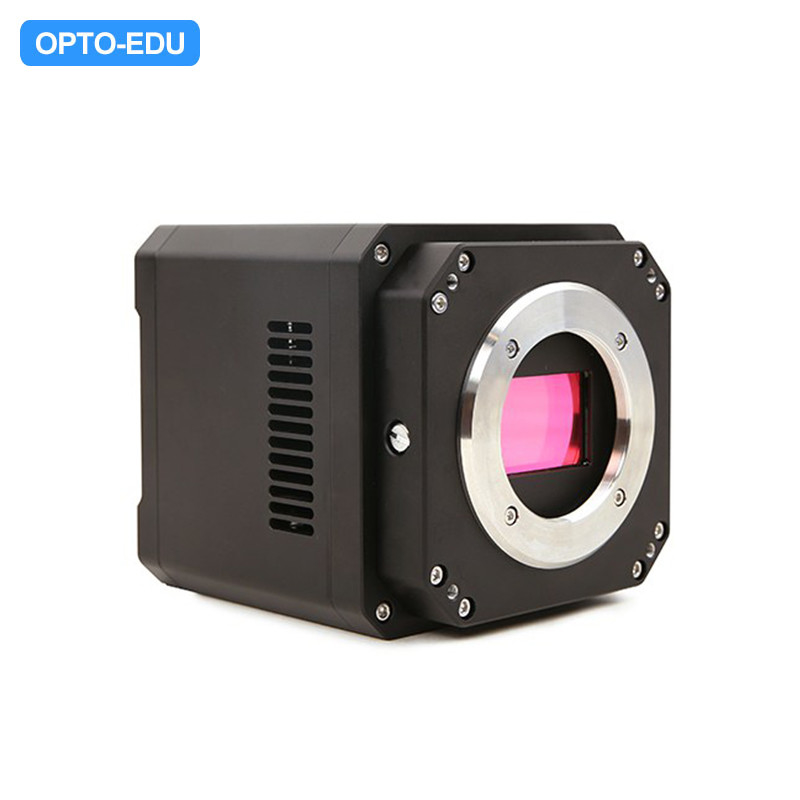

A59.2228 TE-Cooling M52/C-mount USB3.0 CMOS Camera, 4.2M~61M
The A59.2228 series sCMOS Camera adopts SONY Exmor or GSENSE with big pixel size or full-frame CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface to increase the frame rate.With the two-stage Peltier cooling sensor chip to -40°C below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.A59.2228 comes with advanced video & image processing application; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;The A59.2228 can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky application. |
|
◆ Standard camera with SONY Exmor or GSENSE CMOS sensors; ◆ Big pixels or full-frame sensor size; Two-stage TE-cooling with controllable electric fan; ◆ Sensor chip cooling up to-40°C below ambient temperature; ◆ Working temperature can be regulated to specified temperature in 5 minutes; ◆ Smart structure to assure the heat radiation efficiency and avoid the moisture problem; ◆ IR-CUT/ARcoated windows(Optional); ◆ M52 x0.75 or C-mount ◆ USB3.0 5Gbit/second interface ensuring high speed data transmission; ◆ Up to 1000 seconds long time exposure; ◆ Embedded up to 16bit hardware ISP module; ◆ Including 2-D denoising and sharpening Ultra-Fine color engine with perfect color reproduction capability; ◆ Support the capture of video and image in software / hardware trigger mode With advanced video & image processing application; ◆ Support both video and trigger modes; ◆ Providing Windows/Linux/Mac OS multiple platforms SDK; ◆ Native C/C++, C#/VB.NET, DirectShow, Twain control API; |
|
| A59.2228 Models | Sensor Model and Size | Pixel(μm) | SNR | FPS | Sample Average | Time of Exposure |
| 61MAM | 61M/IMX455(M, RS) 2.7"(35.98x23.99) Full Frame |
3.76 x 3.76 | 871mv with 1/30s 0.039mv with 1/30s 88.3dB/47.1dB |
6.1@9568x6380(16bit) 19.1@4784x3190 55.6@3184x2124 191@1040x706 8 Bit / 16 Bit |
1x1 2x2 3x3 9x9 |
0.1ms~1000s |
| 61MAC | 61M/IMX455(C, RS) 2.7"(35.98x23.99) Full Frame |
3.76 x 3.76 | 484.5mv with 1/30s 0.039mv with 1/30s 85.8dB/47.0dB |
6.1@9568x6380(16bit) 19.1@4784x3190 55.6@3184x2124 191@1040x706 8 Bit / 16 Bit |
1x1 2x2 3x3 9x9 |
0.1ms~1000s |
| 24MAC | 24M/IMX410(C, RS) 2.7"(36.02x24.00) Full Frame |
5.94 x 5.94 | 573mv with 1/30s 0.037mv with 1/30s 87.3dB/50.2dB |
15.3@6064x4040(14bit) 41@3024x2012 114@2016x1342 8 Bit / 14 Bit |
1x1 2x2 3x3 |
0.1ms~1000s |
| 4.2MAM | 4.2M/GSENSE2020e (M,NIR,RS) 1.2"(13.31x13.31) |
6.5 x 6.5 | 8.1x107 (e-/((W/m2).s)) Peak QE 64.2% @595nm 0.12(e-/s/pix) @-10C 81.6dB/46.5dB |
45@2048x2048 45@1024 x 1024 8 Bit / HDR 16 Bit |
1x1 2x2 |
0.1ms~1000s |
| 4.2MBM | 4.2M/GSENSE2020BSI (M,UV,RS) 1.2"(13.31x13.31) |
6.5 x 6.5 | 1.1x108 (e-/((W/m2).s)) Peak QE 93.7% @550nm 0.15(e-/s/pix) @-15C 79.1dB/47dB |
45@2048 x2048 45@1024 x1024 8 Bit / HDR 16 Bit |
1x1 2x2 |
0.1ms~1000s |
| 4.2MCM | 4.2M/GSENSE400BSI (M,UV,RS) 2.0"(22.53x22.53) |
11 x 11 | 3.25x108 (e-/((W/m2).s)) Peak QE 95.3% @560nm 1.5(e-/s/pix) @-10C 93.9dB/48.8dB |
44@2048 x2048 44@1024 x1024 8 Bit / HDR 16 Bit |
1x1 2x2 |
0.1ms~1000s |
| Other Specification | |
| Spectral Range | 200-1000nm(The spectral response range of each model is different. Please refer to the product manual of each model for detailed parameters) |
| Protect Windows | IR CUT (AR protection glass is optional) |
| White Balance | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
| Color Technique | Ultra-Fine Color Engine/NA for Monochromatic Sensor |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System | Still Picture and Movie(Free running mode or trigger mode) |
| Cooling System* | Two-stage TE-cooling System -40 °C below Camera Body Temperature |

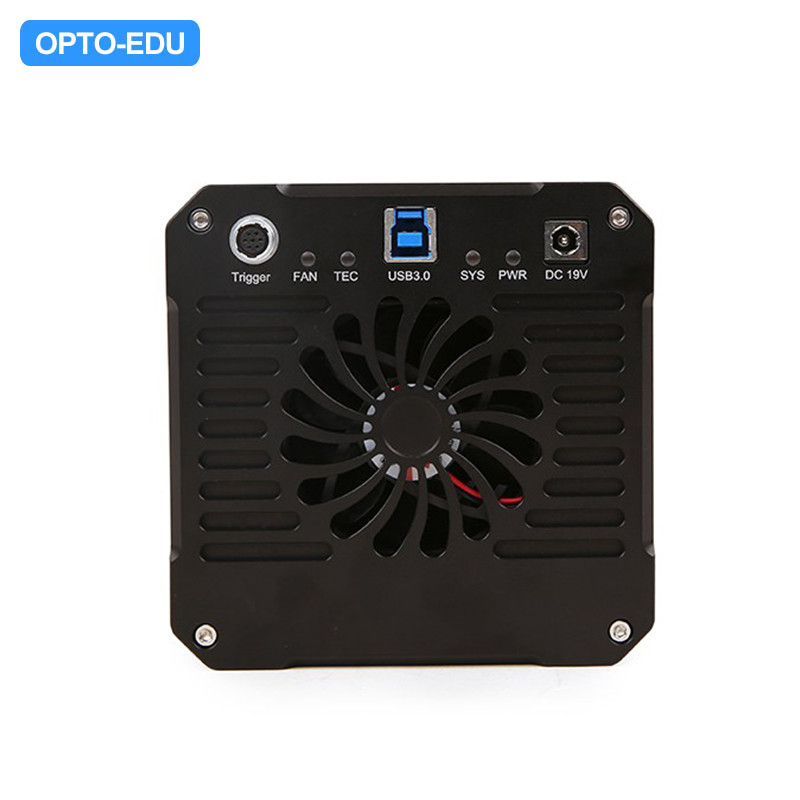

| IO Interface | One optocoupler isolation input, one optocoupler isolation output, two direct connection GPIO |
| Operating Environment | |
| Operating Temperature(in Centidegree) | -10~ 50 |
| Storage Temperature(in Centidegree) | -20~ 60 |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port |
| External Power Adapter for Cooling System, DC19V, 4A | |
| Software Environment | |
| Operating System | Microsoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit) |
| OSx(Mac OS X) | |
| Linux | |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory:2GB or More | |
| USB Port:USB3.0 High-speed Port | |
| Display:17” or Larger | |
| CD-ROM | |
| A | Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton), not shown in the photo(TBD) | |
| B | 3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 2.8Kg/ box); Carton size: L:28.2cm W:25.2cm H:16.7cm(TBD) | |
| C | One MAX series camera | |
| D | Power adapter: input: AC 100~240V 50Hz/60Hz, output: DC19 V 4A | |
| E | High-Speed USB3.0 A male to B male gold-plated connectors cable /1.5m | |
| F | IO cable | |
| G | CD (Driver & utilities software, Ø12cm) | |
| L | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
