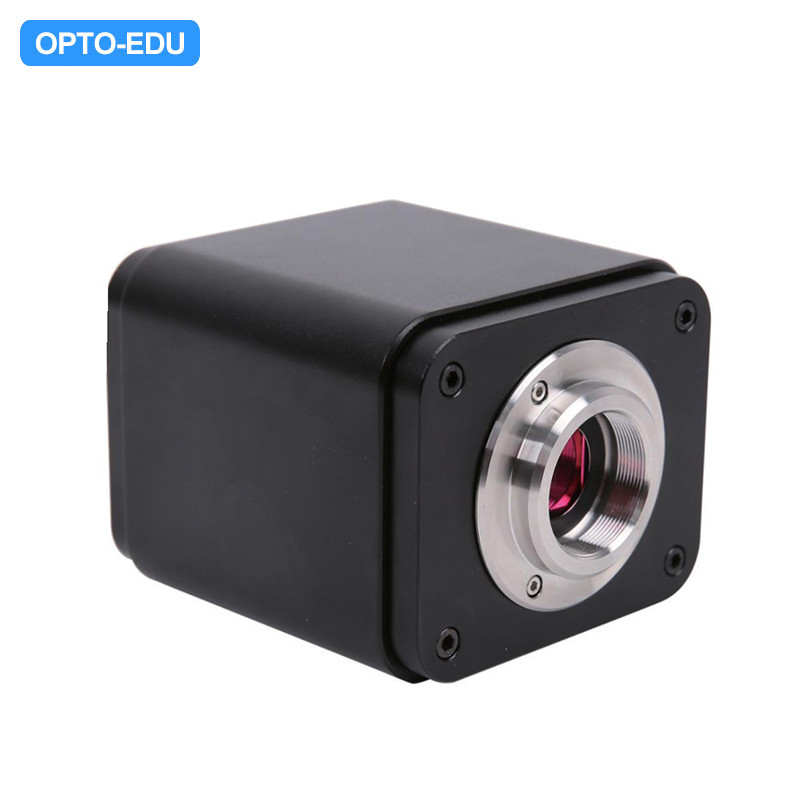

The A59.2238 is a HDMI Camera designed by ToupTek that includes multiple modes of output (HDMI/WiFi/USB), It's a CMOS Camera with multiple interfaces, and auto focus. It uses ultra-high- performance CMOS sensor. The Camera can be directly connected to an HDMI display, or it can be connected to a computer via WiFi or USB, and the image and video can be saved in an SD card /USB flash drive for on-site analysis and subsequent research.
Enhanced with an embedded ARM core, this Camera integrates various functions inside. With the help of a USB mouse and well-designed UI on the HDMI monitor, all functions could be easily controlled.
The A59.2238 HDMI Camera comes with the built-in Auto Focus system, which can realize Auto Focus on specific areas of the sample.
By inserting a WiFi module or connecting to a computer via a USB cable, the user can directly control the camera's hardware with the software ToupView or ToupLite. The X5FCAM4K8MPA Camera can be used for tool field inspection, microscope observation, etc. |
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity/Dark Signal | FPS/Resolution | Binning | Exposure(ms) |
| 8MPA | IMX678© 1/1.8"(7.68x4.32) |
2.0x2.0 | 3541mv with 1/30s 0.15mv with 1/30s |
60@3840x2160 | 1x1 | 0.019~1000 |
| Order Code | Video Saving(FPS/Resolution) | HDMI2.0(FPS/Resolution) | USB3.0(FPS/Resolution) | WiFi(FPS/Resolution) |
| 8MPA | 60@3840x2160 60@1920x1080 |
60@3840x2160 60@1920x1080 |
30@3840x2160 45@2688x1512 60@1920x1080 |
30@3840x2160 60@1920x1080 60@1280x720 |

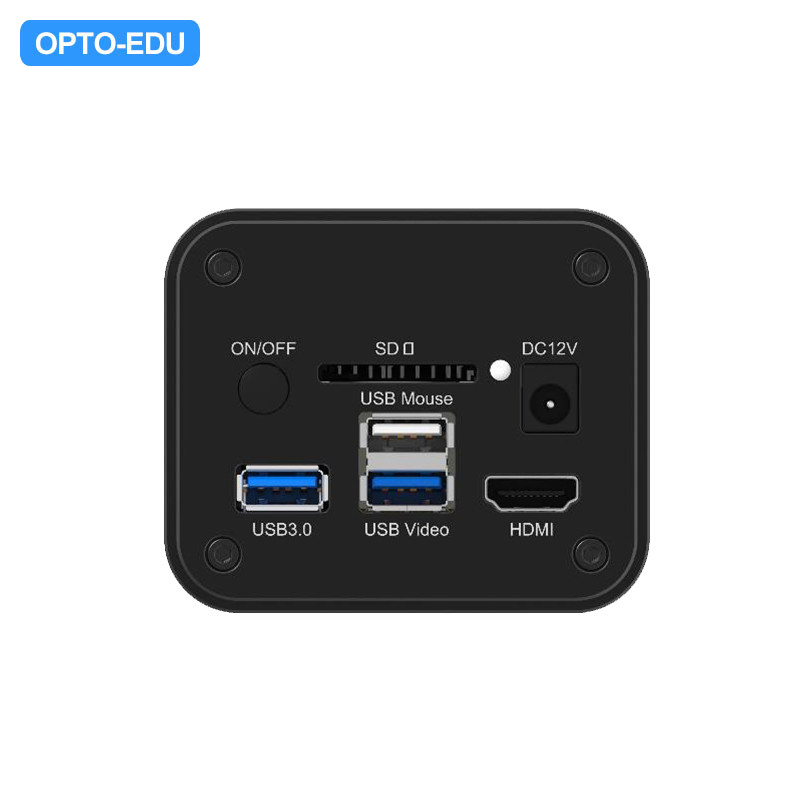

| Interfaceor Button | Function Description |
| USB Mouse | Connect USB mouse for easy operation with embedded XCamView software |
| USB3.0 | Connect USB flash drive to save pictures and videos Connect 5G WiFi module to transfer video wirelessly in real time Connect USB microphone for audio and video recording |
| USB Video | Connect PC or other host device to realize video image transmission |
| HDMI | Comply with HDMI2.0 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors |
| SD | SD card slot, comply with SDIO3.0 standard and SD card could be inserted for video and images saving |
| ON/OFF | Power switch |
| LED | LED status indicator |
| DC12V | Power adapter connection (12V/1A) |
| Video Output Interface | Function Description |
| HDMI Interface | Comply with HDMI2.0 standard;60fps@4K or 60fps@1080P |
| WiFi Interface | Connecting 5G WiFi adapter (USB3.0 slot) in AP/STA mode |
| USB Video Interface | Connecting USB Video port of PC for video transfer H264/MJPEG format video |
| Other Function | Function Description |
| Video Saving | Video format:8M(3840*2160) H264/H265 encoded MP4 file Video saving frame rate: 60fps in Low Delay mode; 30fps in WDR mode |
| Image Capture | 8M (3840*2160) JPEG/TIFF image in SD card or USB flash drive (Default SD card priority, priority can be modified in settings) |
| Measurement Saving | Measurement information saved in different layer with image content Measurement information is saved together with image content in burn in mode |
| ISP | Exposure(Automatic / Manual Exposure) / Gain, White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment,Gamma Adjustment, Contrast Adjustment, Brightness Adjustment,Hue Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function |
| Image Operation | Zoom In/Zoom Out(Up to 10X), Mirror/Flip, Freeze, EDF, Cross Line, Overlay, PIP , Auto Focus , Browser(including Picture Browsing , Video Playback , Video Compare , Picture Compare , EDF , Image Processing), Measurement Function |
| Embedded RTC(Optional) | To support accurate time on board |
| Restore Factory Settings | Restore Camera parameters to its factory status |
| Multiple Language Support | English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Spanish / Japanese / Italian / Dutch / Portuguese |
| Software Environmentunder WiFi/USB Video Output | |
| White Balance | Auto White Balance |
| Color Technique | Ultra-Fine Color Engine |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System | Still Picture or Movie |
| Operating System | Microsoft® Windows® 8 / 8.1 / 10 / 11(32 & 64 bit) OSx(Mac OS X) |
| Linux | |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 4GB or More | |
| USB interface: USB2.0 interface or higher | |
| Display:19” or Larger | |
| CD-ROM | |
| Operating Environment | |
| Operating Temperature (in Centidegree) | -10°~ 50° |
| Storage Temperature (in Centidegree ) | -20°~ 60° |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 12V/1A Adapter |
|
● Sony STARVIS 2 back-illuminated CMOS sensor ● 4K HDMI/ WiFi / USB multiple video synchronous outputs ● 4K/1080P auto switching according to monitor resolution ● Support 4K 60fps low delay HDMI output mode, with an average delay of 40ms ● SD card/USB flash drive for captured image and video storage, support local preview and playback ● New browsing function, providing rich file operation functions, image to image comparison, image to real-time video comparison, multi-image EDF and other functions ● iOS/Android applications for smart phones or tablets ● Provide multiple focusing methods, and the size of the focusing area can be modified; Provide AF+EDF, facilitating the synthesis of high depth of field images in multiple focus areas at high magnification ● Excellent ISP with local tone mapping and 3D denoising ● Provide real-time video EDF function and real-time video WDR output function ● Provide two sets of default ISP parameters for biological microscope and stereo microscope ● Embedded XCamView for the control of the Camera and image processing, supporting automatic edge finding and measurement functions ● ToupView/ToupLite software for PC |
| Standard Packing List | |||
| A | Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.7Kg/ box) | ||
| B | X5FCAM4K8MPA Camera | ||
| C | Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: POWER-U-12V1A(MSA-C1000IC12.0-12W-US): UL/CE/FCC European standard: Model: POWER-E-12V1A(MSA-C10001C12.0-12W-DE): UL/CE/FCC EMI standard: FCC Part 15 Subpart B EMS standard: EN61000-4-2,3,4,5,6 |
||
| D | USB Mouse | ||
| E | HDMI Cable | ||
| F | USB3.0 A male to A male gold-plated connectors cable /2.0m | ||
| G | CD (Driver & utilities software, Ø12cm) | ||
| Optional Accessory | |||
| H | SD Card(16G or above; Speed: class 10) | ||
| I | Adjustable lens adapter | C-Mount to Dia.23.2mm Eyepiece Tube (Please choose 1 of them for your microscope) |
108001/AMA037 108002/AMA050 108003/AMA075 |
| J | Fixed lens adapter | C-Mount to Dia.23.2mm Eyepiece Tube (Please choose 1 of them for your microscope) |
108005/FMA037 108006/FMA050 108007/FMA075 |
| Note: For I and J optional items, please specify your Camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope Camera adapter for your application; | |||
| K | 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube | ||
| L | 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube | ||
| M | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X, Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
|
| N | USB flash drive | ||
| O | USB WiFi adapter | ||
