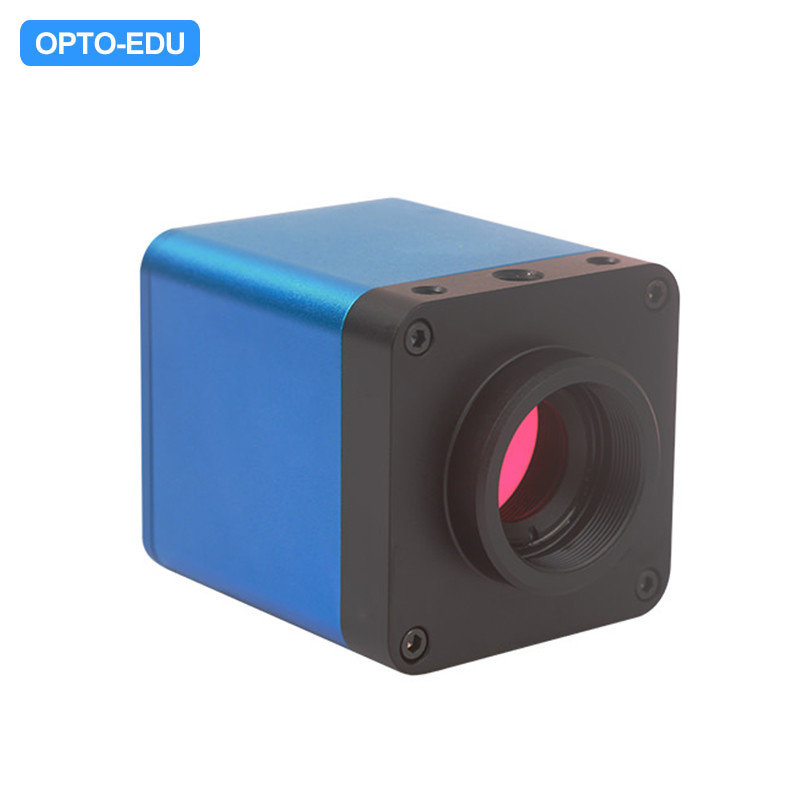

A59.2250 A Camera that has the WiFi output and Ethernet output
When WiFi output is available, this Camera is used as a WiFi Camera and could be connected to mobile devices, such as smart phones, pads and computers. It could work with ToupView app on iOS, Android and windows platform. More than 6 users could connect the Camera simultaneously by WiFi connection.
When Ethernet output is available, this Camera is used as a Ethernet camera. The Camera could be used with ToupView or other 3rd part software which could support Ethernet camera. |
|
◆ Sony Exmor back illuminated CMOS sensor ◆ Powerful ISP functions ◆ iOS/Android app for smart phones or tablets |
◆ LAN, WLAN(AP/STA mode) multiple video outputs ◆ ToupView/ToupLite software for PC |
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure (ms) |
| 5MPA | 5M/Sony IMX178© 1/1.8"(6.22x4.67) |
2.4x2.4 | 425mv with 1/30s 0.15mv with 1/30s |
30@2592*1944 | 1x1 | 0.03ms~918ms |
| Interface | Function Description |
| WiFi Antenna | Antenna for the WiFi signal |
| LED | LED status indicator When the power adapter is inserted into the power slot, the LED light will be on and the starting process will last about 8 seconds; WiFi AP mode: the LED flashes fast; WiFi STA mode: the LED flashes slowly; LAN mode: the Ethernet indicator and the LED light will be on; |
| DC12V | Power jack (12V/1A). |
| AP/STA Switch Button | Press to switch between AP and STA mode; |
| LAN | 100M Ethernet port to connect to the router or computer to transfer video. Video can be transmitted via LAN or WiFi. LAN and WiFi cannot be used at the same time. The priority of LAN connection is higher than WiFi; |
| Video Output Interface | Function Description |
| LAN Interface | 30fps@2592*1944 H264 encoded video and Jpeg image capture |
| WiFi Interface | Support 802.11ac protocols in AP/STA mode; 30fps@2592*1944 H264 encoded video and Jpeg image capture |
| Other Function | Function Description |
| Software Environment under LAN/WiFi/Output | |
| White Balance | Auto White Balance |
| Color Technique | Ultra-Fine Color Engine |
| ISP | Exposure(Automatic/Manual Exposure)/ Gain, White Balance(Manual / One Push), Sharpening,3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment,50HZ/60HZ Anti-flicker, Mirror/Flip, Network Bandwidth Adjustment |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System | Still Picture or Movie |
| Operating System | Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit) OSx(Mac OS X) Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher Memory: 4GB or More Ethernet: RJ45 Interface, 100M bps or more WiFi Adaptor: Support 802.11 b/g/n/ac Display:19” or Larger CD-ROM |
| Operating Environment | |
| Operating Temperature (in Centidegree) | -10°~ 50° |
| Storage Temperature (in Centidegree) | -20°~ 60° |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 12V/1A Adapter |
| Standard Packing List | |||
| A | Gift box : L:15cm W:15cm H:10cm (1pcs, 0.46kg/ box) | ||
| B | One WECAM series camera | ||
| C | Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC European standard: Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard |
||
| D | CD (Driver & utilities software, Ø12cm) | ||
| Optional Accessory | |||
| E | Ethernet cable | ||
| F | Adjustable lens adapter | C-Mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) |
108001/AMA037 108002/AMA050 108003/AMA075 |
| G | Fixed lens adapter | C-Mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) |
108005/FMA037 108006/FMA050 108007/FMA075 |
| Note: For F and G optional items, please specify your Camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
| H | 108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube | ||
| I | 108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube | ||
| J | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
|
