▶ Ultra-high Quality High-quality flat-field apochromatic object sharp scientific research-grade ultra-high-speed area array camera (Patented face scanning technology) Independently developed military-grade high-brightness full-range LED light source High-speed and high-quality presentation of tissue and cell structure morphology
▶ High-speed Scanning 15.00mmx15.00mm scanning range 20x magnification mode, ≤35 seconds 40x magnification mode, ≤50 seconds
▶ Improved Efficiency It can provide bright field fast scanning, and can also realize fluorescence, phase contrast, and polarization scanning by upgrading the reef equipment to meet different scientific research needs
▶ Slide Protection Advanced machine vision technology Adaptive slide travel recognition Automatically monitor and prompt slide positioning and system abnormalities |
▶ Dual Screen Dual Control The machine body is integrated with a touch screen display, which can independently control slide scanning and slide browsing, without the need for external auxiliary equipment, realizing dual-screen dual control of the equipment
▶ Ultra-high Stability Technology accumulation creates a record of continuous scanning of 5,000 sheets without error Single scan success rate is greater than 95%
▶ Flexible Throughput 60 pieces/120 pieces/240 pieces/480 pieces of various flux specifications are flexible to choose from to meet different construction needs Support original machine flux upgrade to calmly face future development
▶ One-click Sharing The scanned digital slides can be shared with any user by generating a QR code with one click. Users can browse and edit the slides through smart terminals, which is convenient and fast. |
|
|
● slide Loading Recognition Function Automatically skip the loading point without slides during continuous scanning
● slide Label Recognition Function Automatically recognize the symbol, barcode or QR code information in the slide label
● Organization Outline Recognition Function Intelligently recognize the outline of the tissue area in the slide, and skip the non-organization area during the scanning process
● slide Stroke Recognition Function Using machine vision technology, it can automatically monitor and prompt the abnormality of the slide during the scanning process to avoid fragmentation and card |
|
● Tissue or cell quantitative analysis software ● Mitophagy technology software ● Immunohistochemistry quantitative analysis software ● Digital slide management and browsing software ● Remote consultation software |
|

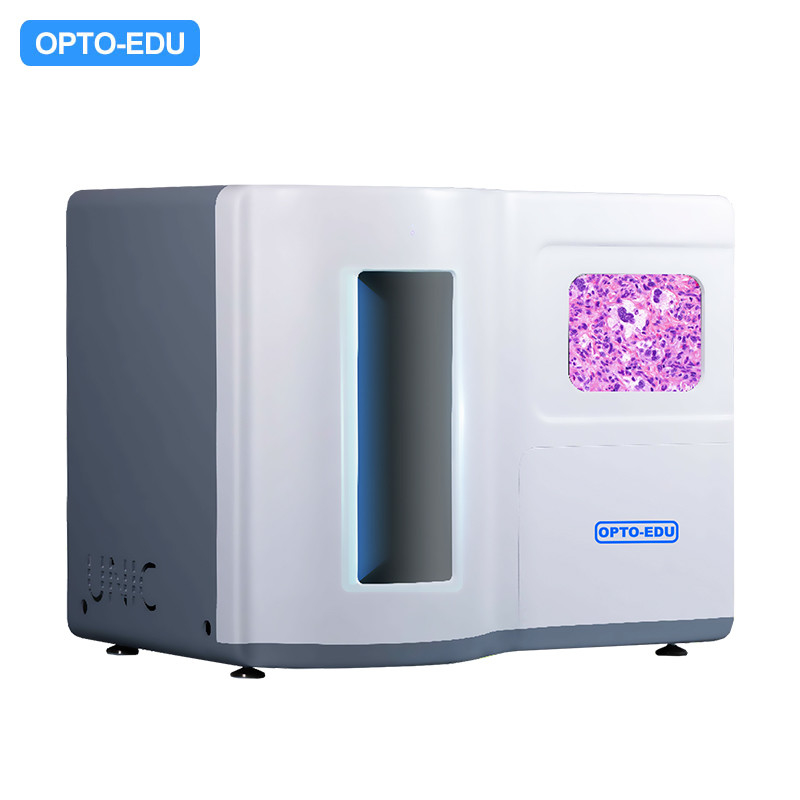

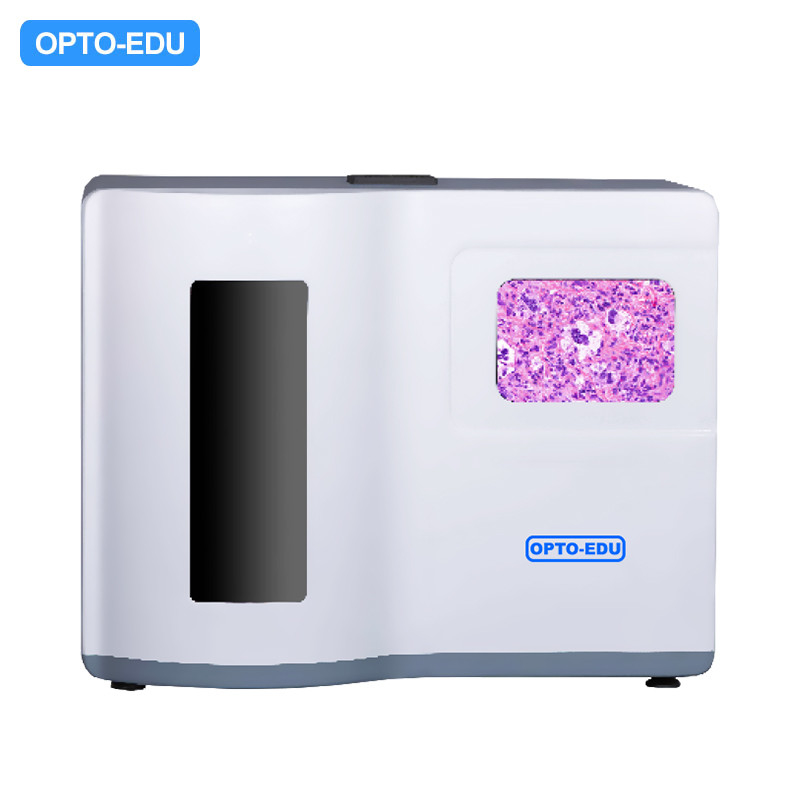

| M30.5820 High Throughput Digital slide Scanning Analysis System Specification | |
| Slide Capacity | 60pcs/120pcs/240pcs/480pcs standard pathology slides (75*25mm) |
| Objective | APO 20x N.A.0.8 high quality plan apochromatic objective lens |
| APO 40x N.A.0.45 high quality plan apochromatic objective lens | |
| Camera | 5.0M Scientific research-grade large-area CMOS digital camera |
| Scanning Method | High-speed continuous area scanning |
| Scanning Speed | 15x15mm scanning area: |
| -20x scan, <35 seconds | |
| -40x scan, <50 seconds | |
| Scanning Resolution | 20x scan ≤ 0.24um/pixel |
| 40x scan ≤ 0.12um/pixel | |
| Scanning Mode | Fast, Accurate, 3D, Fusion mode |
| Repeat Position Accuracy | X, Y axis ≤ 40nm, Z axis ≤ 25nm |
| Multi-layer Scanning Function | Z-axis automatic focusing, multi-layer scanning, each layer image can be browsed and saved |
| Fusion Scanning Function | Applying depth of field fusion technology to obtain ultra-depth scanning images |
| Intelligent Recognition | Automatic identification of slide type: HE/IHC/Cyto |
| Automatic identification of label symbols, barcodes and QR codes | |
| Software | Scan Software: iScanneX, Browser Software: iViewer |
| Product Size | 896mmx635.5mmx715mm |
|
It provides solutions for a variety of applied research and can be widely used in scientific research, teaching, biochips, cancer and tumor research, toxicology and drug safety evaluation, forensic pathology and other fields. |
