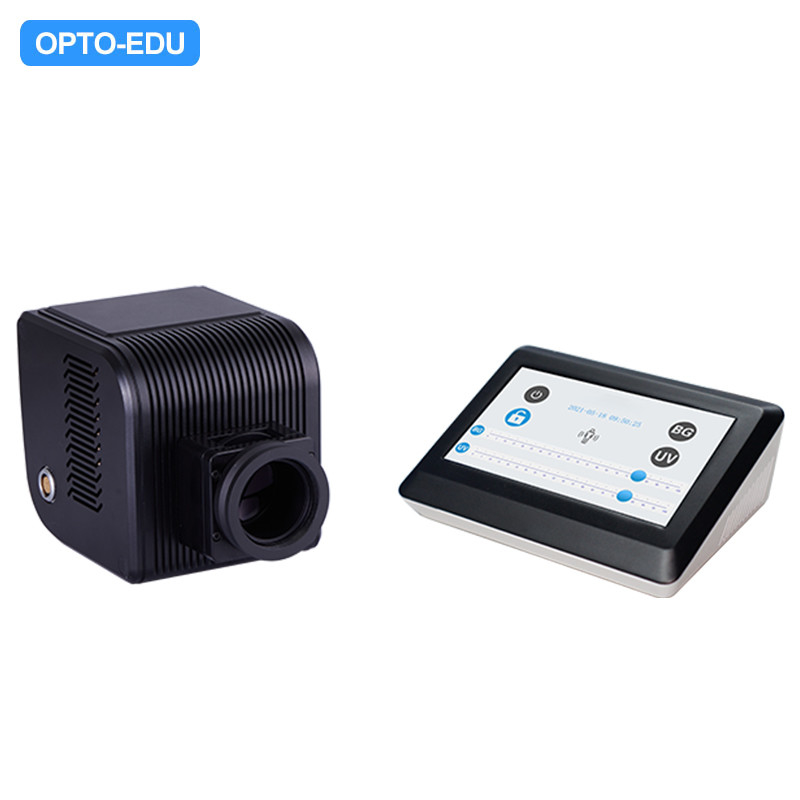

The broad-spectrum high-power LED fluorescence illuminator MG-100 is a new generation of fluorescence microscope light source that replaces the mercury lamp. Based on innovative LED technology, it can achieve wide-spectrum excitation covering the UV to visible light spectrum. The touch screen controller is easy to use, can be turned on and used immediately, and the brightness can be freely adjusted. The service life can reach 50,000 hours. |
| A5F.4810 Broad Spectrum LED Fluorescent Illuminator Specification | |
| Light source host | Broad-spectrum cover excitation wavelength from 350nm~750nm, output intensity is adjustable |
| UV lighting | Yes, separately control UV lighting |
| BG lighting | Yes |
| White lighting | Yes |
| Light source control box | 100W |
| Power line | 1.5 meter, 8P aviation head (With temperature control, protect the light source) |
| Power control box | Touch screen show light intensity |
| Control mode | Two independent controllers, Dimming range: 0-100%, Dimming accuracy:1% |
| Brightness memory | Two channels |
| Heat dissipation mode | Forced air cooling |
| Size | Light source:L180mm x W 114mm x H122mm |
| Control box:L 196mm x W 137mm x H 65.5mm | |
|
|

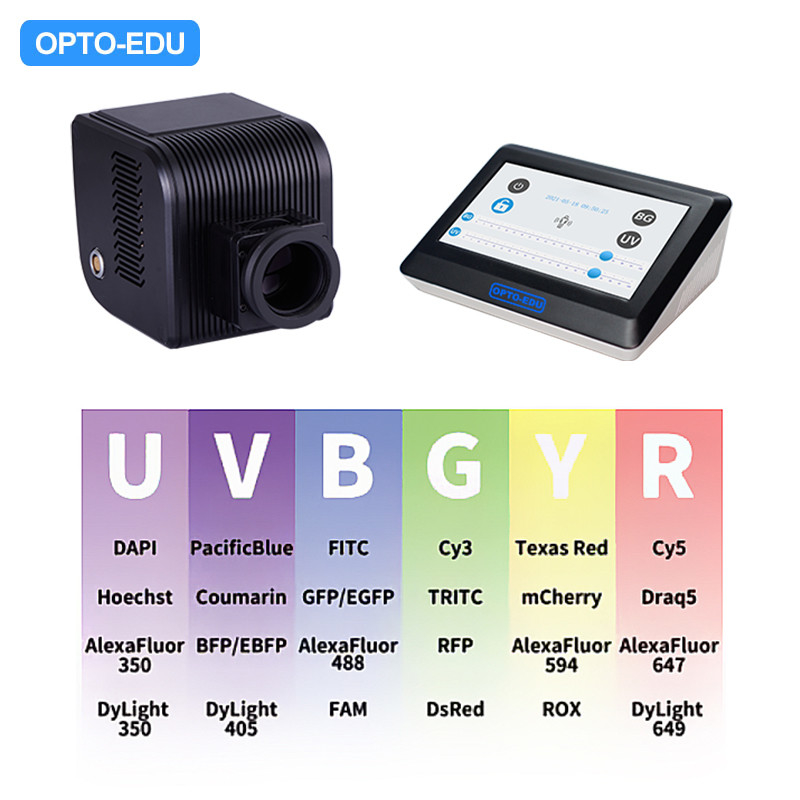

▶ Broad spectrum excitation The continuous output spectrum covers the 350-390nm ultraviolet band and the 410-760nm visible light band, which can meet the excitation requirements of common fluorescent dyes. |
|
▶ UV band separate control The ultraviolet band and visible light band adopt two-way control, and the ultraviolet light can be turned off separately, which has lower phototoxicity to living cells. It can also be safely used as a bright field light source and fluorescent light source in material science metallographic microscopes. |
|
|
|
▶ Benefits compared to mercury light source LED fluorescent light sources have obvious advantages over traditional mercury lamps. They do not require preheating, can be turned on and used immediately, and can be turned off at any time. The brightness can be controlled with an accuracy of 1%, and the brightness is stable and uniform. The lifespan can be up to 50,000 hours, saving maintenance costs. |
|
▶ Matching world famous brands fluorescence microscopes It can be matched with fluorescence microscopes of four major brands including Olympus BX43, Nikon 80i, Leica DM2500, Zeiss Observer D1 and Chinese mainstream brands, with optional fiber optic output configuration to meet the needs of different users in scientific research, analysis and inspection. |
|
