| A23.3650 Zoom Stereo Microscope, 0.7-5.0x, 1:7.1 |
| Optical System |
Greenough |
| Head |
Binocular / Trinocular Head, Interpupillary Distance 55~75mm, Both Eye Tube Diopter Adjustable +/-5° |
| Magnification |
0.7x~5.0x Continuous Zoom Body, Total Magnification 3.5x~250x (With Optional Eyepiece & Lens) |
| Zoom Ratio |
1:7.1 |
| Eyepiece |
WF10x/22mm, High Eyepoint, Dia.30mm |
| Max Field of View |
Ф35 mm |
| Working Distance |
100mm, Optional 30~165mm |
| Bracket Holder Hole |
Inner Dia. Ф76mm |
| Model |
A23.3650-B6T |
| Trinocular Head, Light Split Fixed 4/6 |

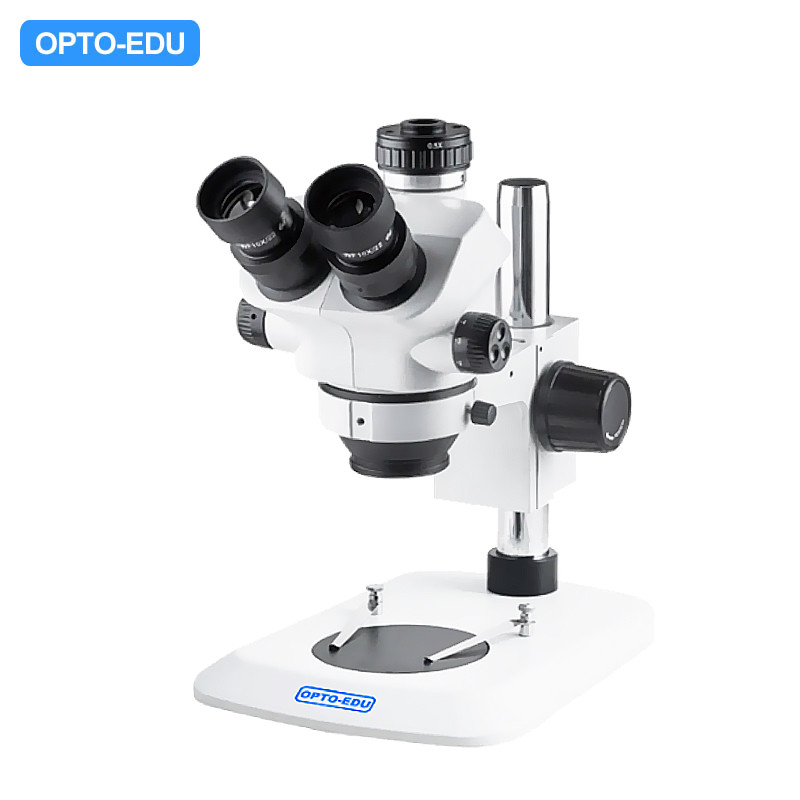

| B6 Pole Stand, Size 210*274*38mm, Pole Dia.32mm, Height 240mm, No Light Source, |
| 0.5x C-Mount |
| A23.3650-B8LT |
| Trinocular Head, Light Split Fixed 4/6, |

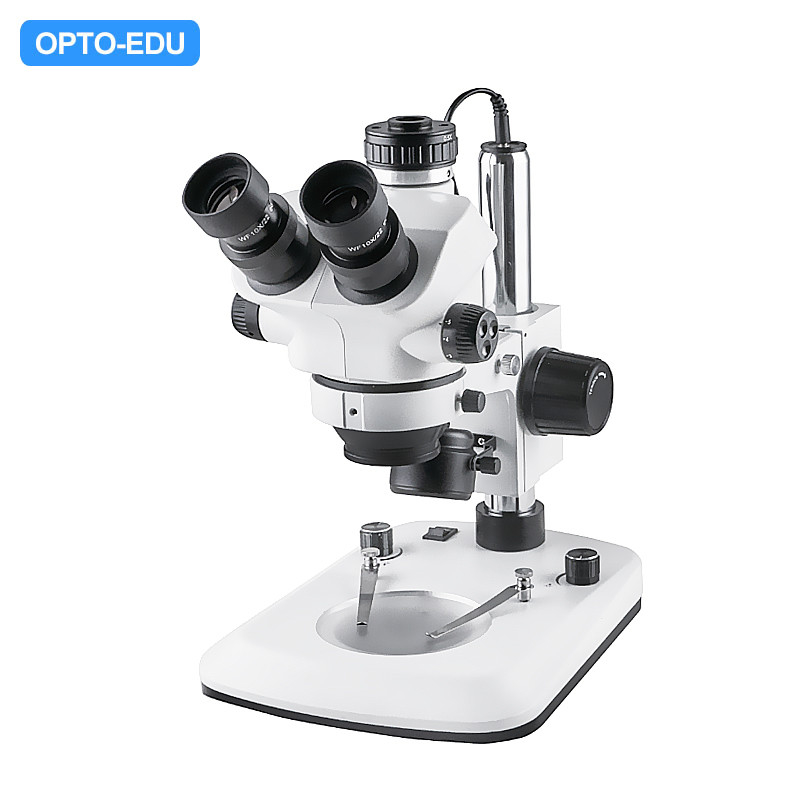

| B8L Pole Stand, Size 210*274*38mm, Pole Dia.32mm, Height 240mm, Up/Bottom 3W LED, |
| 0.5x C-Mount |
| A23.3650-B8LST |
| Trinocular Head, Light Split Fixed 4/6, |

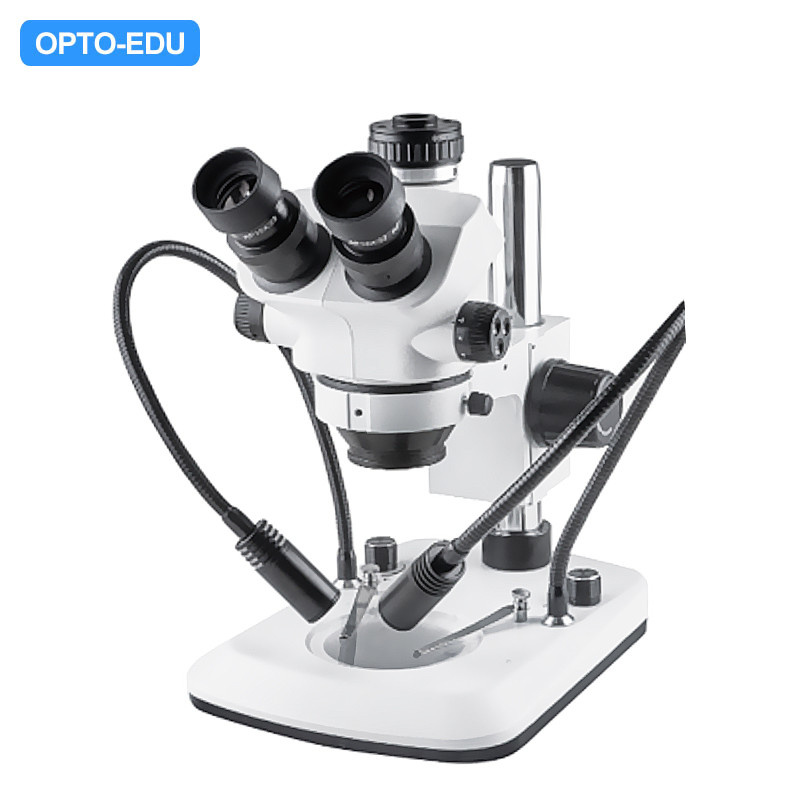

| B8LS Pole Stand, Size 210*274*38mm, Pole Dia.32mm, Height 240mm, Up Dual Pipe LED Brightness Separately Adjustable, Bottom 3W LED, |
| 0.5x C-Mount |
| A23.3650-B3T |
| Trinocular Head, Light Split Fixed 4/6, |

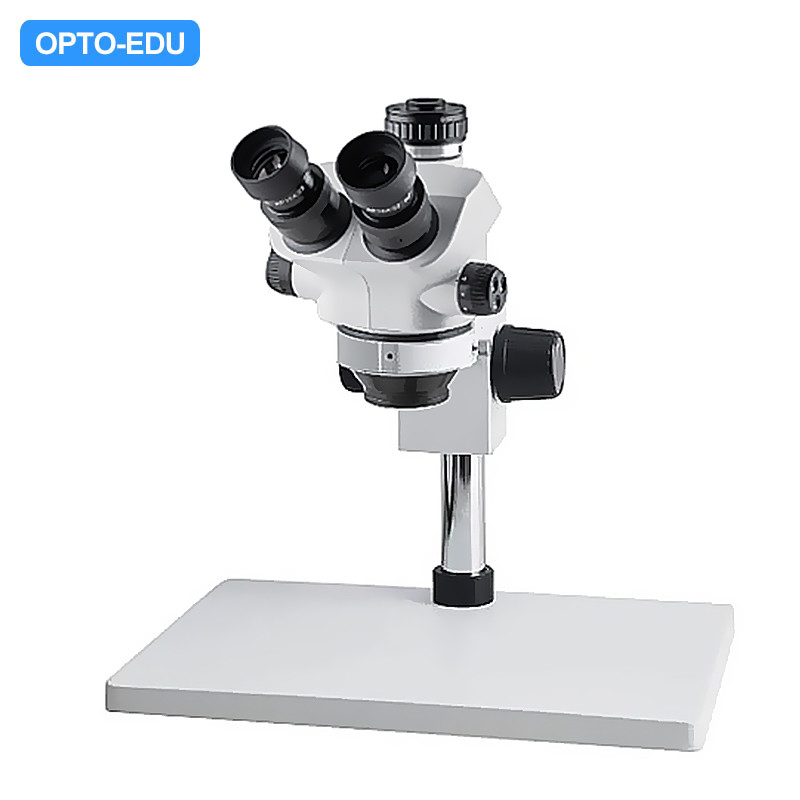

| B3 Pole Stand, Size 380*260*20mm, Pole Dia.32mm, Height 240mm, No Light Source, |
| 0.5x C-Mount |
| Optional |
Eyepiece WF15x, WF20x, WF25x, A51.3621 |
| Auxiliary Lens 0.5x, 0.7x, 1.5x, 2.0x, A52.3621 |
| C-Mount 0.35x, 1.0x, A55.3623 |
| 35 Kinds of Stands & Brackets, See A54.3630 |
