OPTO-EDU A11.3621 1000x Student Biological Microscope

OPTO-EDU A11.3621 1000x Student Biological Microscope

  • Magnification
    40x-1000x
  • Eyepiece
    WF10x/18mm, 1 Pair
  • Objective
    Achromatic Objective 4x,10x,40x,100x
  • Nosepiece
    Quadruple
  • Focusing
    Coaxial Coarse & Fine Focusing, Coarse Focus Range 8mm
  • Working Stage
    LowDouble Layer Mechanical Working Stage, 115x125mm, Moving 30x80mm Position Control Knob, Height Adjustable Up/Down 18mm
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A11.3621
  • Document
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

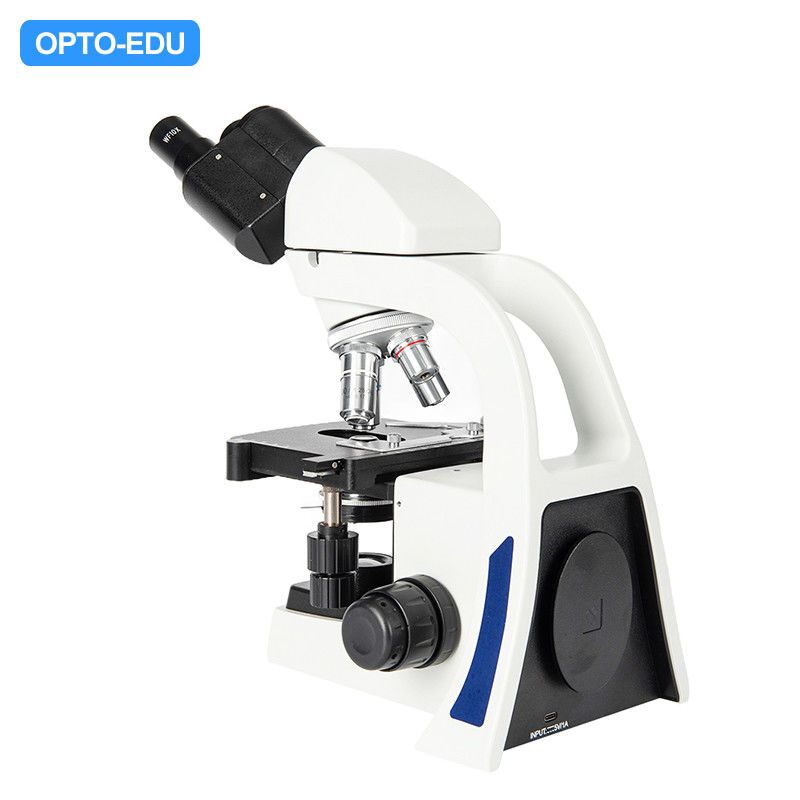

OPTO-EDU A11.3621 1000x Student Biological Microscope

  • Binocular, Trinocular Head With 0.5x C-Mount Digtal Camera
  • WF10x/18mm Eyepiece. Quadruple Nosepiece, 195mm Achromatic Objective 4x10x40x100x
  • Abbe Condenser N.A.1.25 Equipped Iris Diaphragm And Filter Holder
  • Double Layer Mechanical Working Stage 115x125mm Moving 80*30mm
  • LED Adjustable Brightness, Rechargeable Batteries Built-in

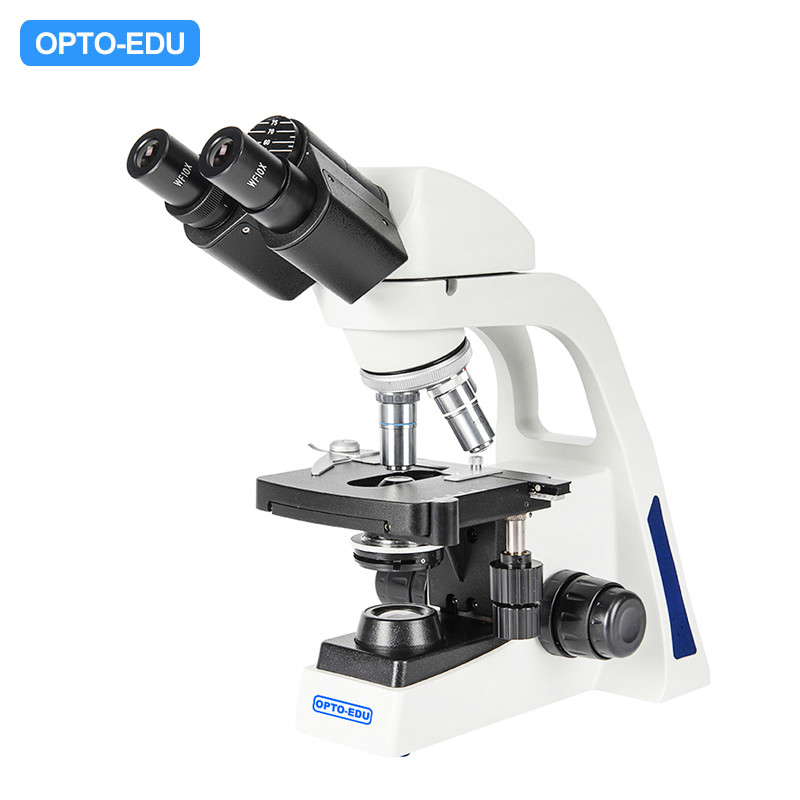

OPTO-EDU A11.3621 1000x Student Biological Microscope 0

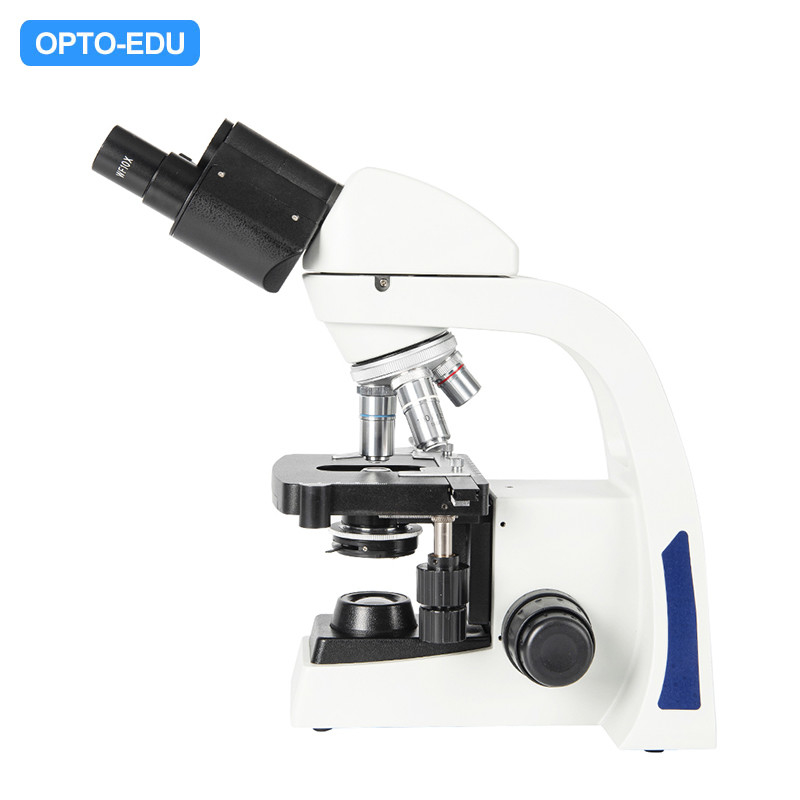

OPTO-EDU A11.3621 1000x Student Biological Microscope 1
A11.3621 Biological Microscope
Magnification 40x-1000x
Head A11.3621-B
Binocular, 30° Inclined, Interpupillary Distance 50~75mm, Left Diopter Adjustable +/-5°
A11.3621-T
Trinocular, 30° Inclined, Interpupillary Distance 50~75mm, Left Diopter Adjustable +/-5°,  With 0.5x C-Mount
Eyepiece WF10x/18mm, 1 Pair
WF16x/14mm, 1 Pair (Optional)
WF20x/10mm, 1 Pair (Optional)
Objective Achromatic Objective 4x,10x,40x,100x
Plan Achromatic Objective 4x,10x,40x,100x (Optional)
Nosepiece Quadruple
Quintuple (Optional)
Focusing Coaxial Coarse & Fine Focusing,  Coarse Focus Range 8mm, Fine Focus Precision 0.004mm, Tension Adjustment Ring
Working Stage Double Layer Mechanical Working Stage, 115x125mm, Moving 30x80mm
Condenser N.A1.25 Abbe Condenser, With Iris Diaphragm, With Filter Holder
Illumination LED, Brightness Continuously Adjustable, Built-in Recharging Batteries
Power Adapter Input 100-240V, Output DC 5V-1A

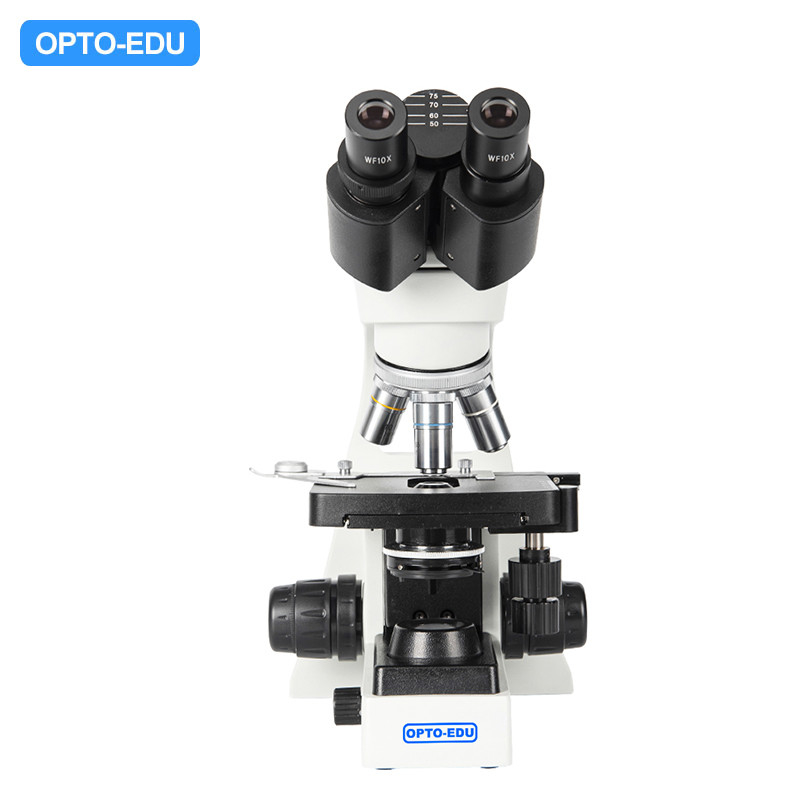

OPTO-EDU A11.3621 1000x Student Biological Microscope 2
