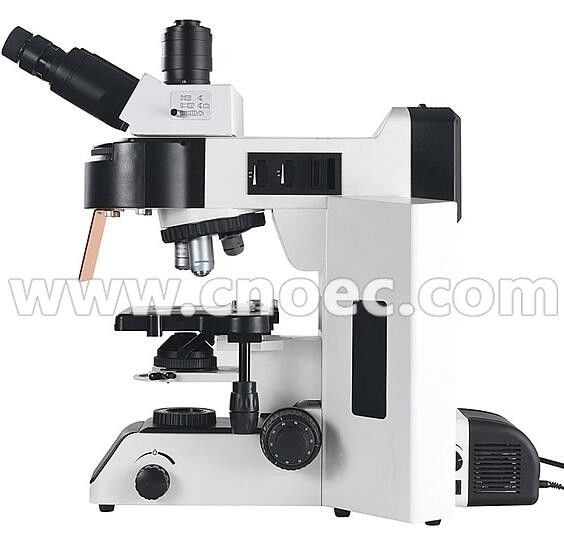

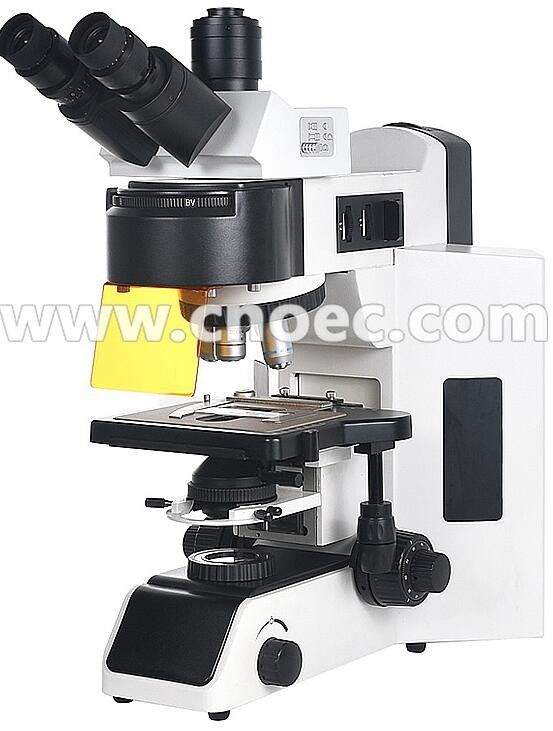

Infinity Trinocular Fluorescence Microscope With Disc LED A16.4501
An Ideal Instrument For Fluorescent Observation In Biology, Cytology, Oncology, Genetics And Amynology.
-- Infinite Optical System
-- Large Numerical Aperture Fluorescent Objective

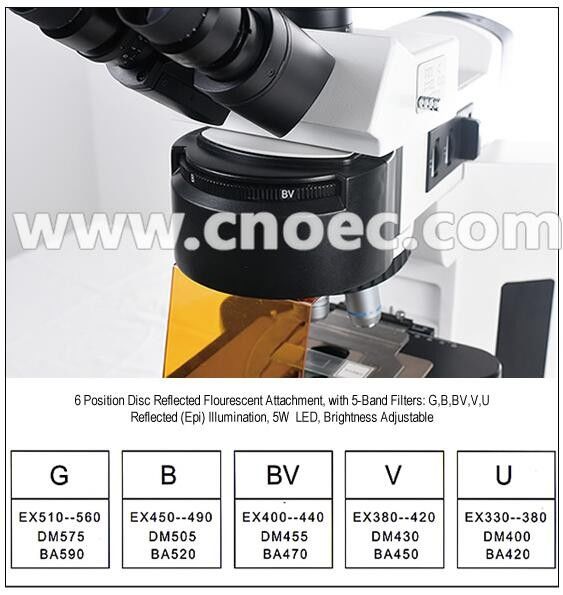

-- Six Position, Five-band Fluorescent Filters: G (Green), B (Blue), BV (Blue-violet), V (Violet), U (Ultra Violet)
-- LED Reflected Flourescent System
|
Specification
|
A16.4501 LED Fluorescent Microscope
|
| Optical System |
Infinite, Focal Distance f=200mm |
| Head |
Trinocular, 30° Inclined, 360° Rotatable, Interpupillary Distance Adjustable, |
| Eyepiece |
WF10x/22mm,±5 Diopter Adjustment |

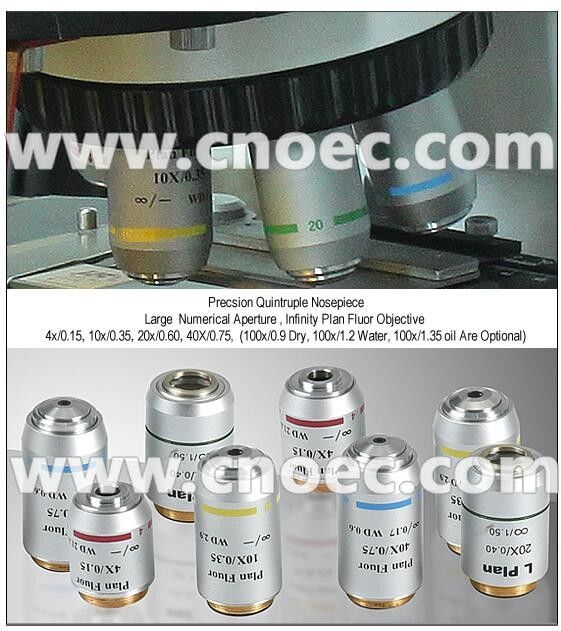

| Large Numerical Aperture, Infinity Plan Fluorescent Achromatic Objective |
4x/0.15, W.D. 17.416mm |
| 10x/0.45, W.D. 3.60mm |
| 20x/0.75, W.D. 0.60mm |
| 40x/0.95, W.D. 0.17mm |
| Focusing System |
Coaxial Coarse & Fine Focusing, Fine Focusing Graduation 0.002mm |
| Nosepiece |
Quintruple |
| Stage |
Double Layer Mechancial Stage, Size 180x150mm / 75x50mm,
With Ceramic-coated Surface, Coaxial XY Moving adjustment Konb |

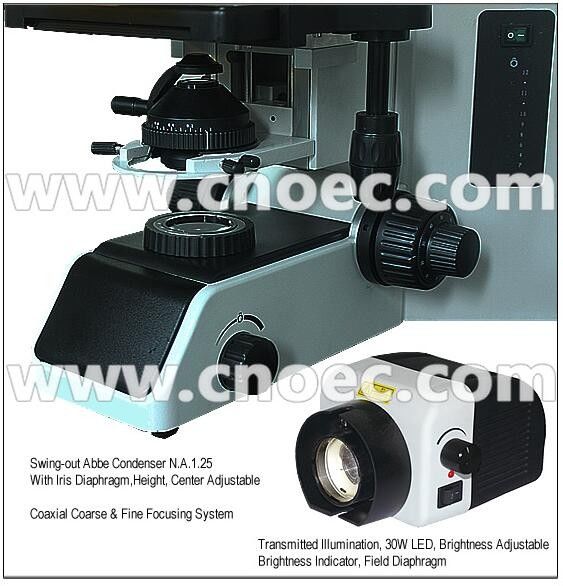

| Condenser |
Swing-out Abbe Condenser N.A. 1.25 |
| Illumination (Kohler) |
Reflected (Epi) Illumination, LED 5W, Brightness Adjustable, With Aperture And Field Diaphragm, Fluorescent Filter G,B,BV,U,V |
| Transmitted Illumination, LED 30W, Brightness Adjustable |
| Adapter |
0.3x C-Mount
|
| Power Supply |
AC100-240V Wide Power Range, |
|
Optional Accessories
|
Item No. |
| Infinity Plan Fluorescent Achromatic Objective |
100x/0.90 (Dry), W.D.0.62mm |
A5F.4501-100A |
| 100x/1.20 (Water), W.D. 0.16mm |
A5F.4501-100B |
| 100x/1.35 (Oil), W.D.0.08mm |
A5F.4501-100C |
| Spectro-Microscopy System |
Click Item No. For Detail |
A50.4501 |
| Adatper |
C-Mount 0.75x |
A55.4501-75 |
| C-Mount 0.5x |
A55.4501-5 |
| Phase Contrast Attacment |
Turret Phase Contrast Condener, Centering Telesclpe, Phase Contrast Objecitve 10x, 40x |
A5P.4501-A |
|
